Side Object Sensor Replacement

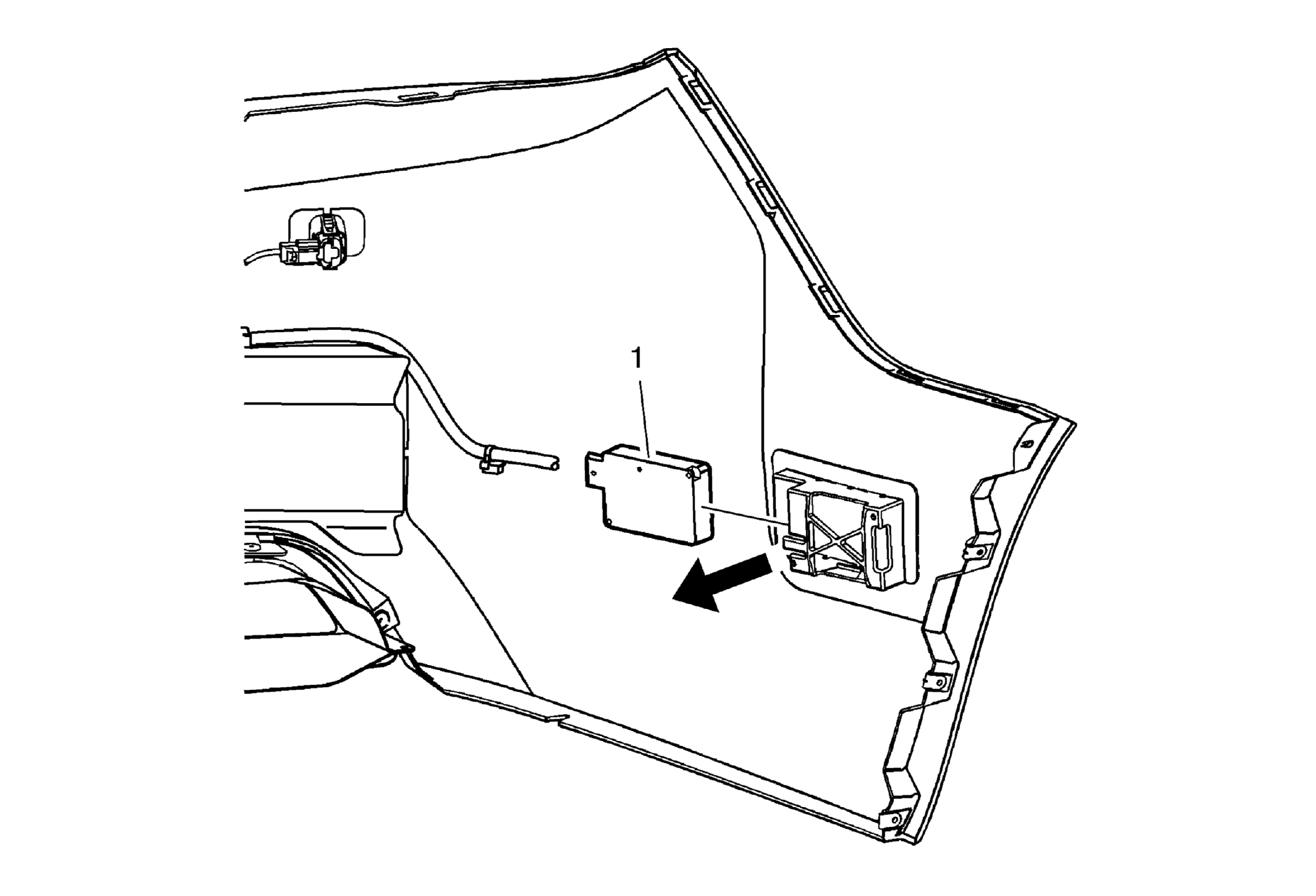

Fig 1: Side Object Sensor Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Side Object Sensor Assembly Procedure Disconnect the side object sensor electrical connector. Release the locking retainer from the side object sensor bracket. Program the side object sensor after replacement. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Side Object Sensor Assembly

Procedure

Disconnect the side object sensor electrical connector.
Release the locking retainer from the side object sensor bracket.
Program the side object sensor after replacement. Refer to Control Module References .
