Home >> Buick >> 2017 >> Cascada Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic and Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry

April 5, 2026: LEMON Manuals is launched! Read the announcement.

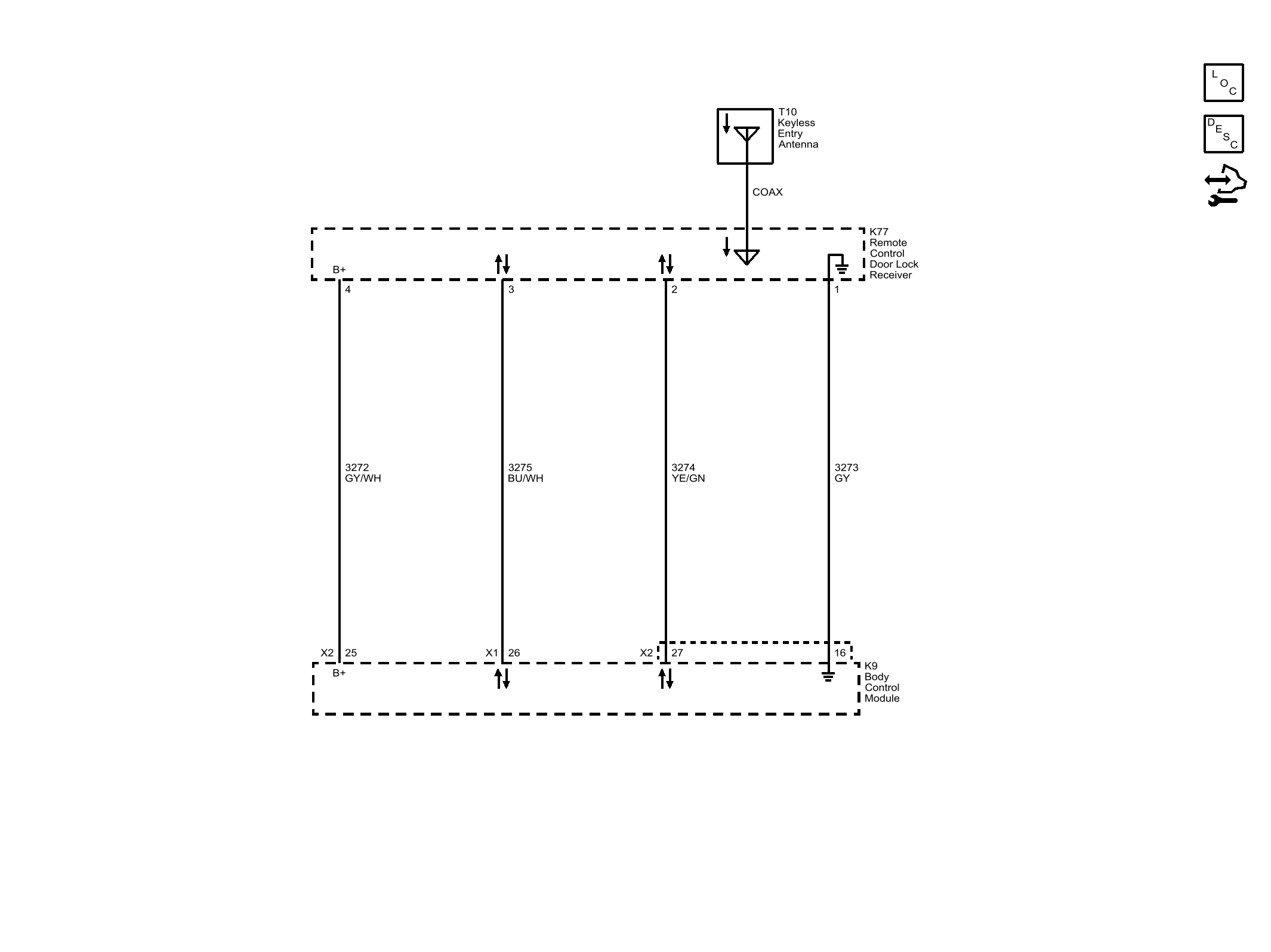

Keyless Entry

GM4890490
