Behind the Instrument Panel Components
Behind the Instrument Panel Components

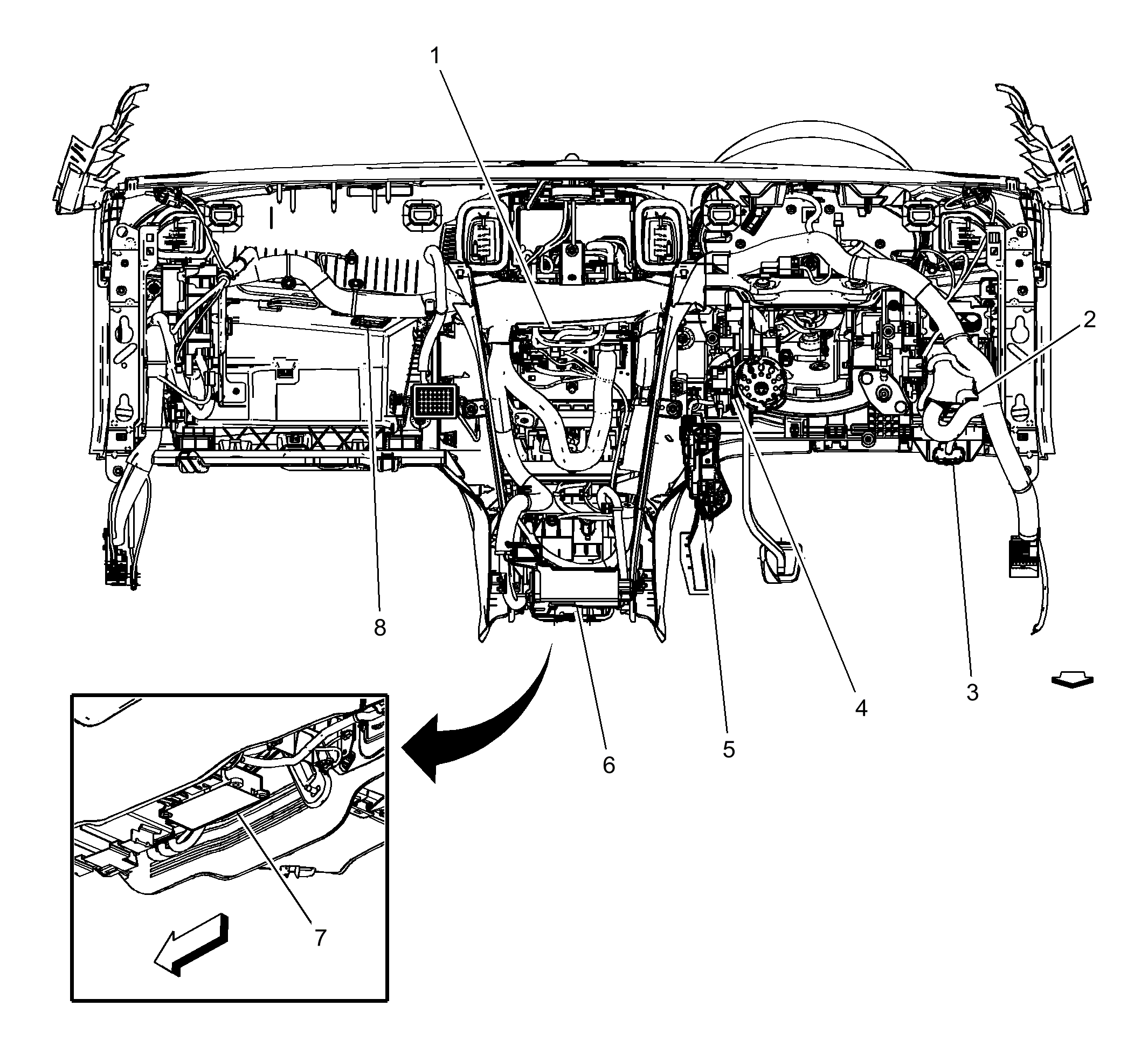

| Items |
|---|
| 1. A11 Radio A11 Radio X1A11 Radio X10A11 Radio X4A11 Radio X5 ()A11 Radio X7A11 Radio X8 () |
| 2. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel (fuses)X51A Fuse Block - Instrument Panel (relays) |
| 3. X84 Data Link Connector X84 Data Link Connector |
| 4. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor |
| 5. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
| 6. K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 7. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1K36 Inflatable Restraint Sensing and Diagnostic Module X2 |
| 8. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp |
