HVAC Components - Left Rear

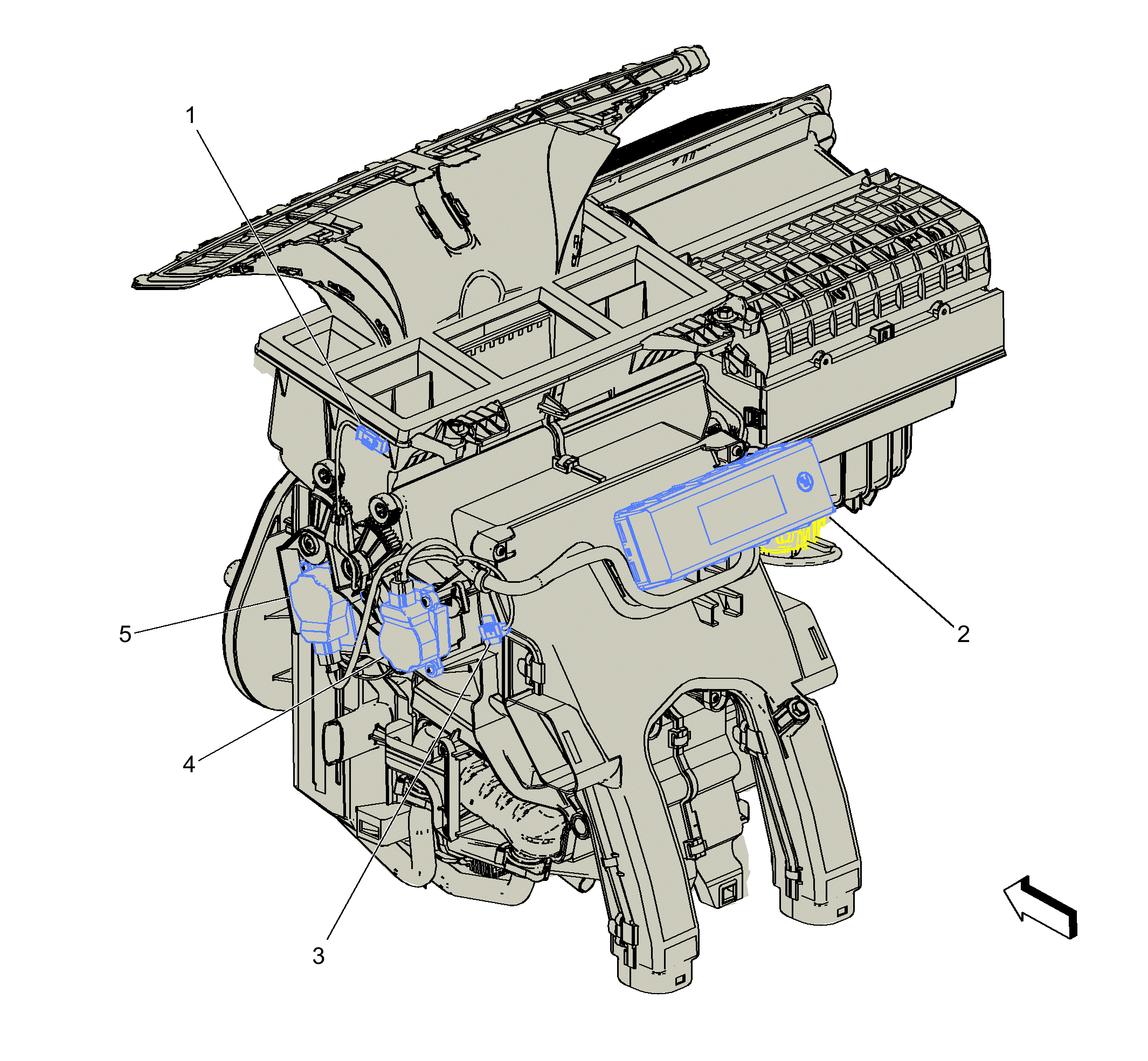

GM2313691Courtesy of GENERAL MOTORS COMPANY
HVAC Components - Left Rear

Items
1. B7H Air Temperature Sensor - Duct Left Upper B7H Air Temperature Sensor - Duct Left Upper
2. K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3K33 HVAC Control Module X4
3. B7D Air Temperature Sensor - Duct Left Lower B7D Air Temperature Sensor - Duct Left Lower
4. M6L Air Temperature Door Actuator - Left M6L Air Temperature Door Actuator - Left
5. M37 Mode Door Actuator M37 Mode Door Actuator
