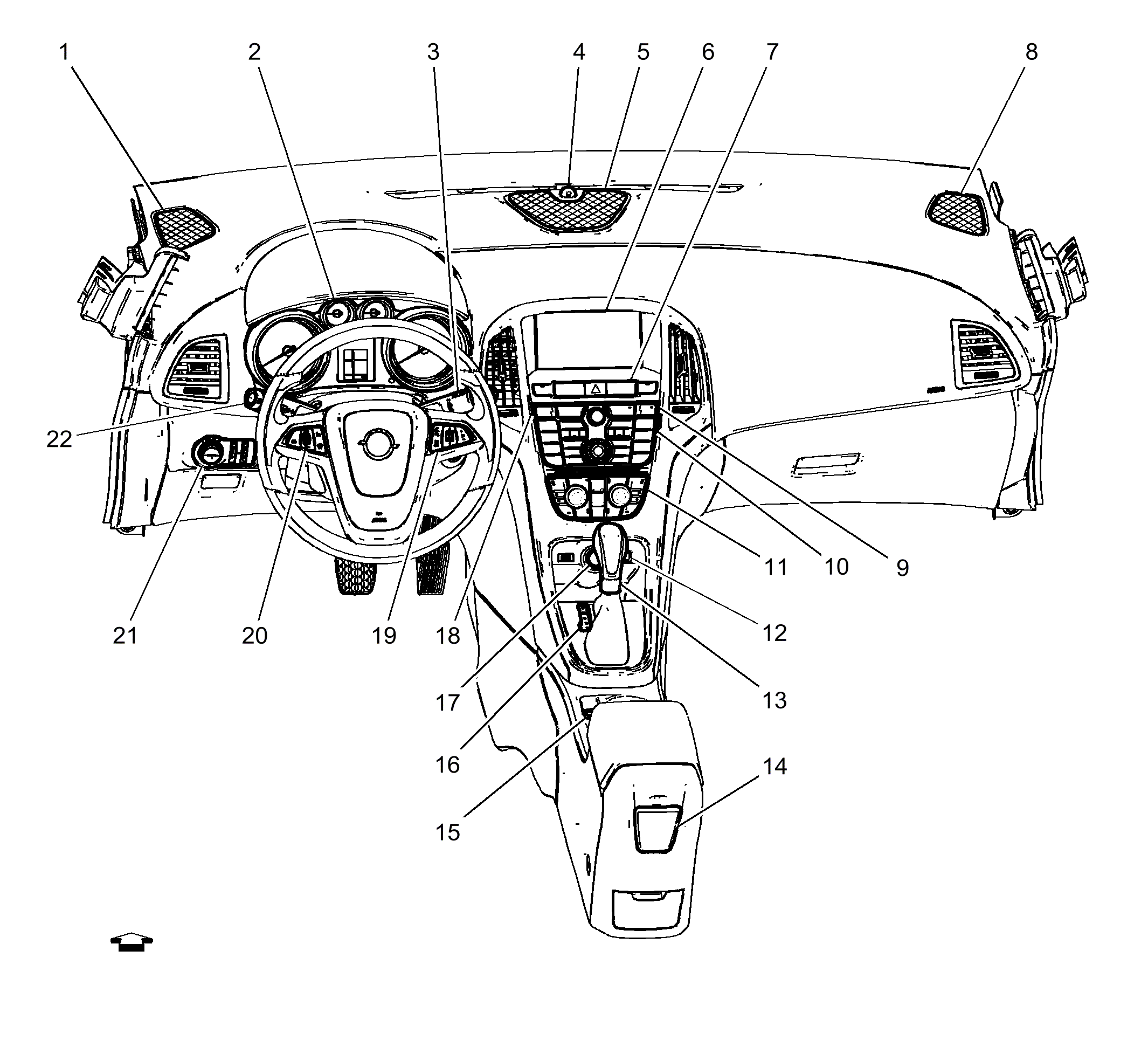

Instrument Panel Components
Instrument Panel Components
| Items |
|---|
| 1. P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter |
| 2. P16 Instrument Cluster P16 Instrument Cluster |
| 3. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch |
| 4. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 5. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel |
| 6. P17 Info Display Module P17 Info Display Module X1P17 Info Display Module X2 () |
| 7. S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel |
| 8. P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter |
| 9. S48D Multifunction Switch 2 - Instrument Panel S48D Multifunction Switch 2 - Instrument Panel |
| 10. A22 Radio Controls A22 Radio Controls () |
| 11. A26 HVAC Controls A26 HVAC Controls |
| 12. X83 Auxiliary Audio Input X83 Auxiliary Audio Input |
| 13. S3 Transmission Shift Lever S3 Transmission Shift Lever |
| 14. X80H Accessory Power Receptacle - Center Console X80H Accessory Power Receptacle - Center Console |
| 15. S91 Park Brake Control Switch S91 Park Brake Control Switch |
| 16. P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator |
| 17. X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel |
| 18. S48C Multifunction Switch 1 - Instrument Panel S48C Multifunction Switch 1 - Instrument Panel |
| 19. S70R Steering Wheel Controls Switch - Right S70R Steering Wheel Controls Switch - Right |
| 20. S70L Steering Wheel Controls Switch - Left S70L Steering Wheel Controls Switch - Left |
| 21. S30 Headlamp Switch S30 Headlamp Switch |
| 22. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch |
