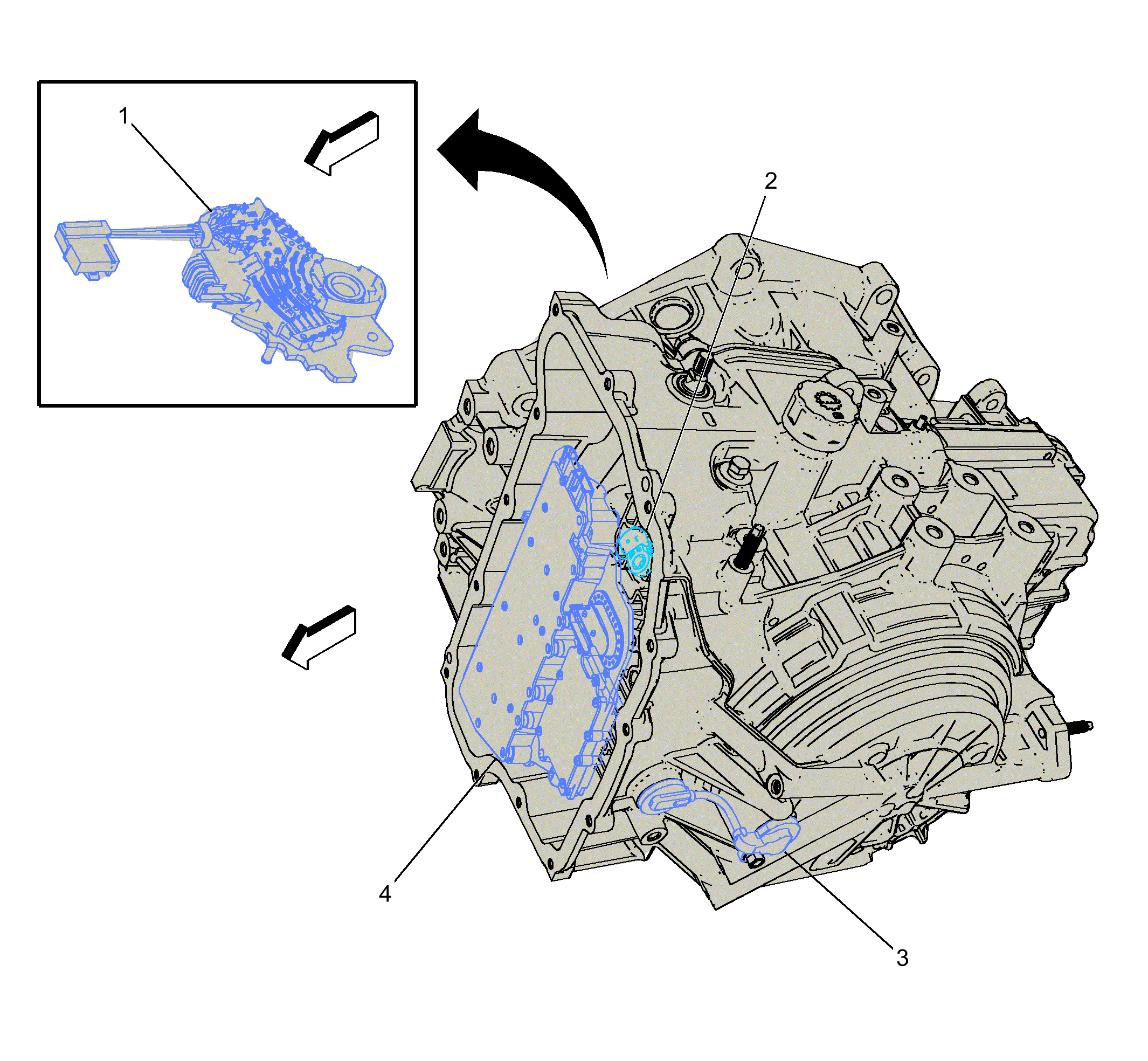

Automatic Transmission Components (MH7)

GM3683133
Automatic Transmission Components (MH7)

Items
1. B15 Transmission Internal Mode Switch
2. B14A Transmission Output Shaft Speed Sensor
3. B14C Transmission Input Shaft Speed Sensor
4. Q8 Control Solenoid Valve Assembly Q8 Control Solenoid Valve Assembly X1
