Body Control Module Bracket Replacement

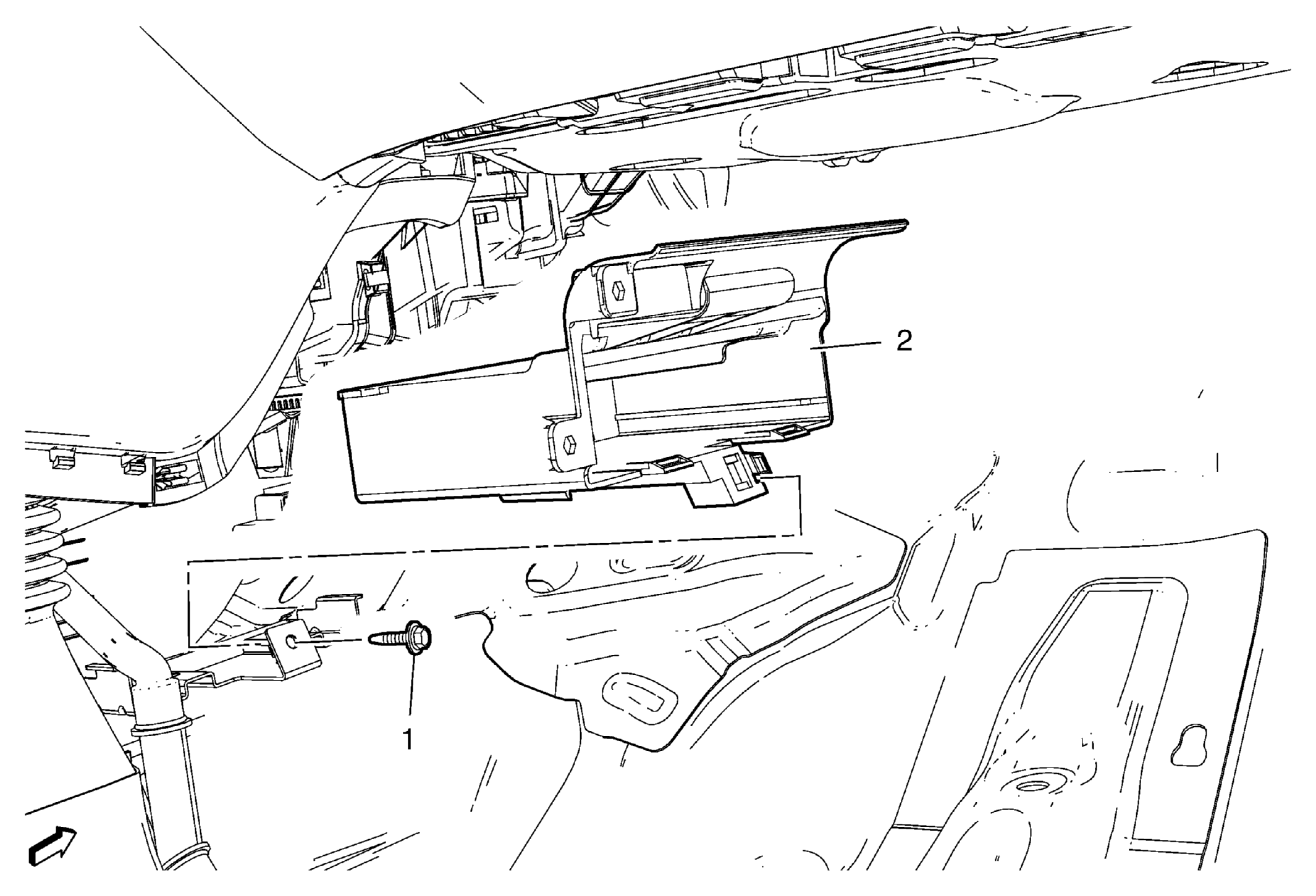

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove body control module. Refer to Body Control Module Replacement . |
|
| 1 | Body Control Module Bracket Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Body Control Module Bracket |
