Front Object Alarm Sensor Wiring Harness Replacement

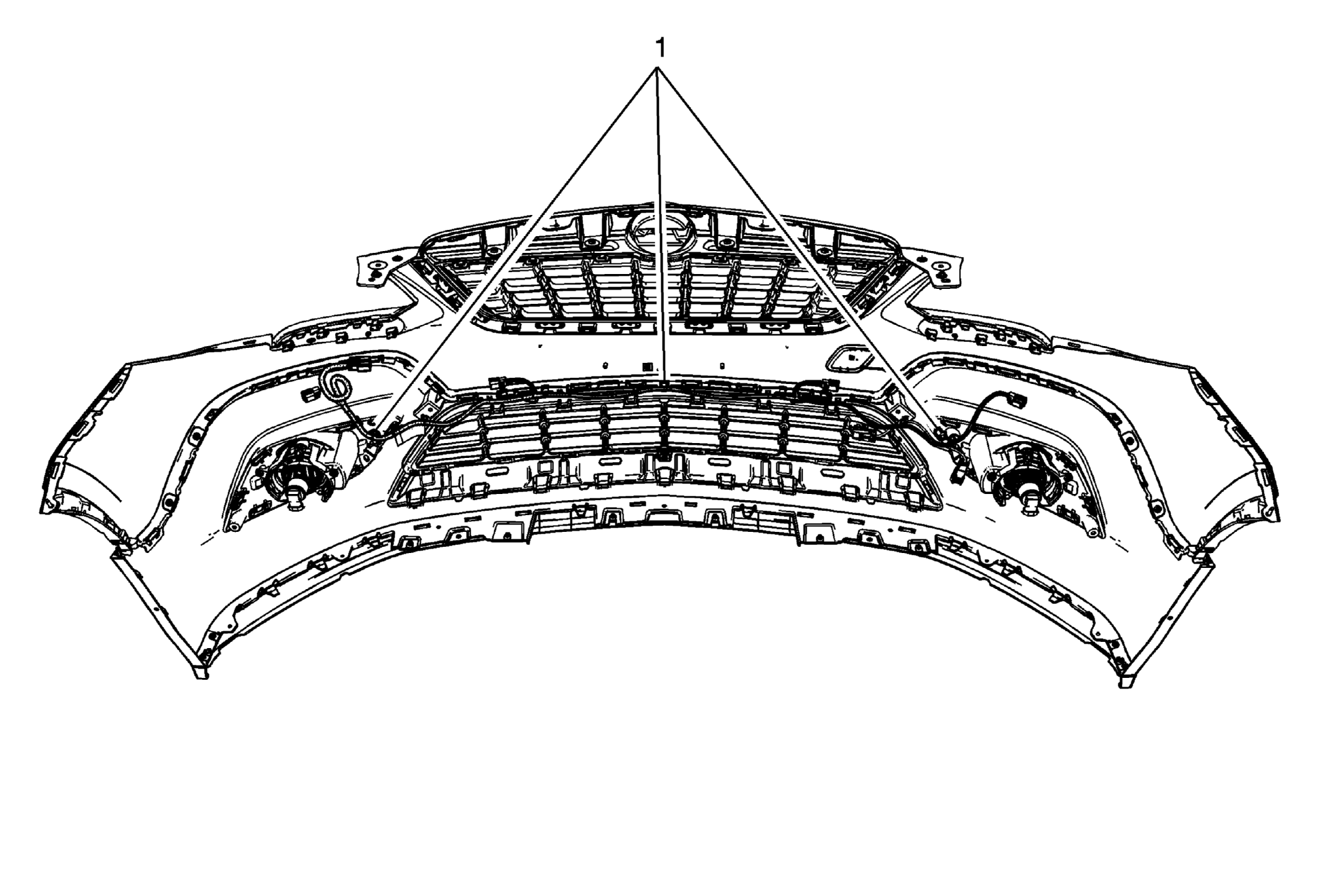

Fig 1: Front Object Alarm Sensor Wiring Harness

GM2792114

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Chevrolet)Front Bumper Fascia Replacement (Buick) .

1

Front Object Alarm Sensor Wiring Harness

Procedure

Disconnect the front object alarm sensor wiring harness electrical connectors from the front object sensors.
Disconnect the front object alarm sensor wiring harness electrical connectors from the front fascia wiring harness.
Using a suitable tool, disconnect the front object alarm sensor wiring harness from the front fascia.
