Front View Camera Replacement

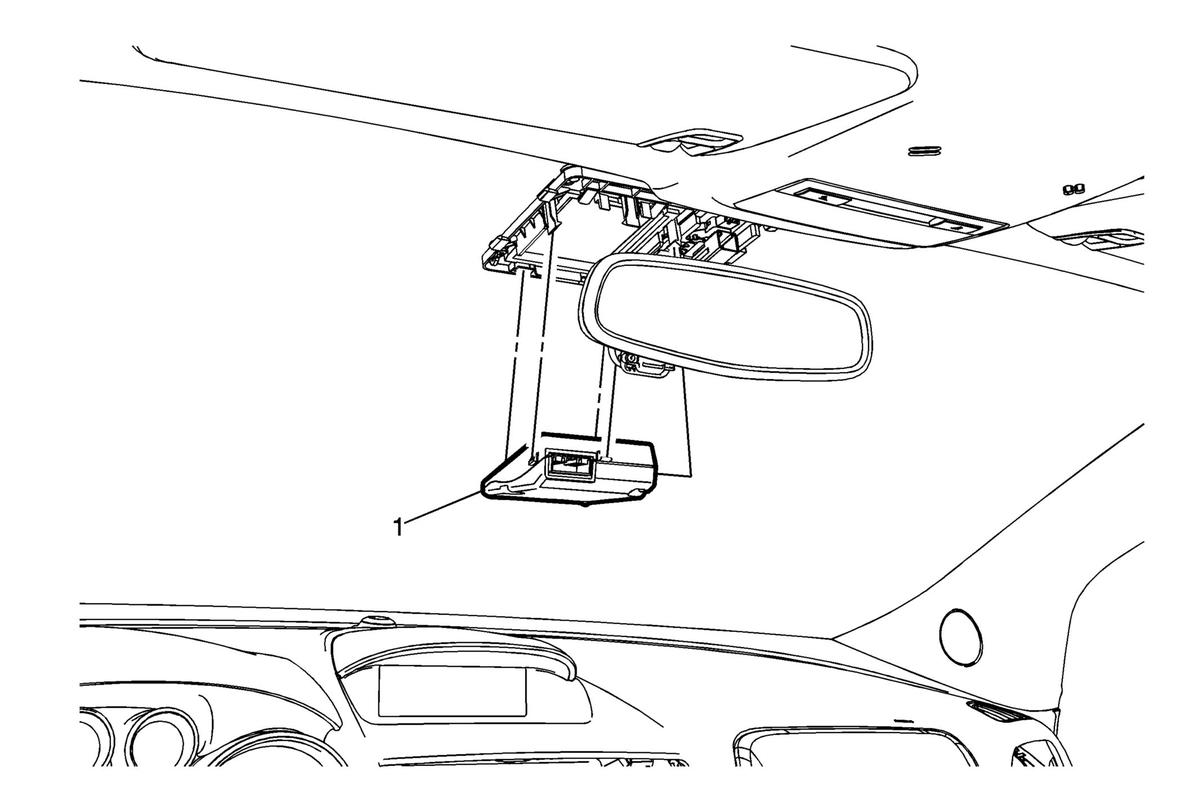

Fig 1: Front View Camera

GM2778032

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the windshield outside moisture sensor cover. Refer to Windshield Outside Moisture Sensor Cover Replacement (Buick)Windshield Outside Moisture Sensor Cover Replacement (Chevrolet) .

1

Front View Camera

Procedure

Using a suitable plastic tool, insert the tool between the edge of the front view camera retainers, turn the tool to release the retainers and the camera and rotate downward.
Disconnect the electrical connector.
After replacement of the front view camera, program the front view camera. Refer to Control Module References .
