Rear Object Sensor Wiring Harness Replacement

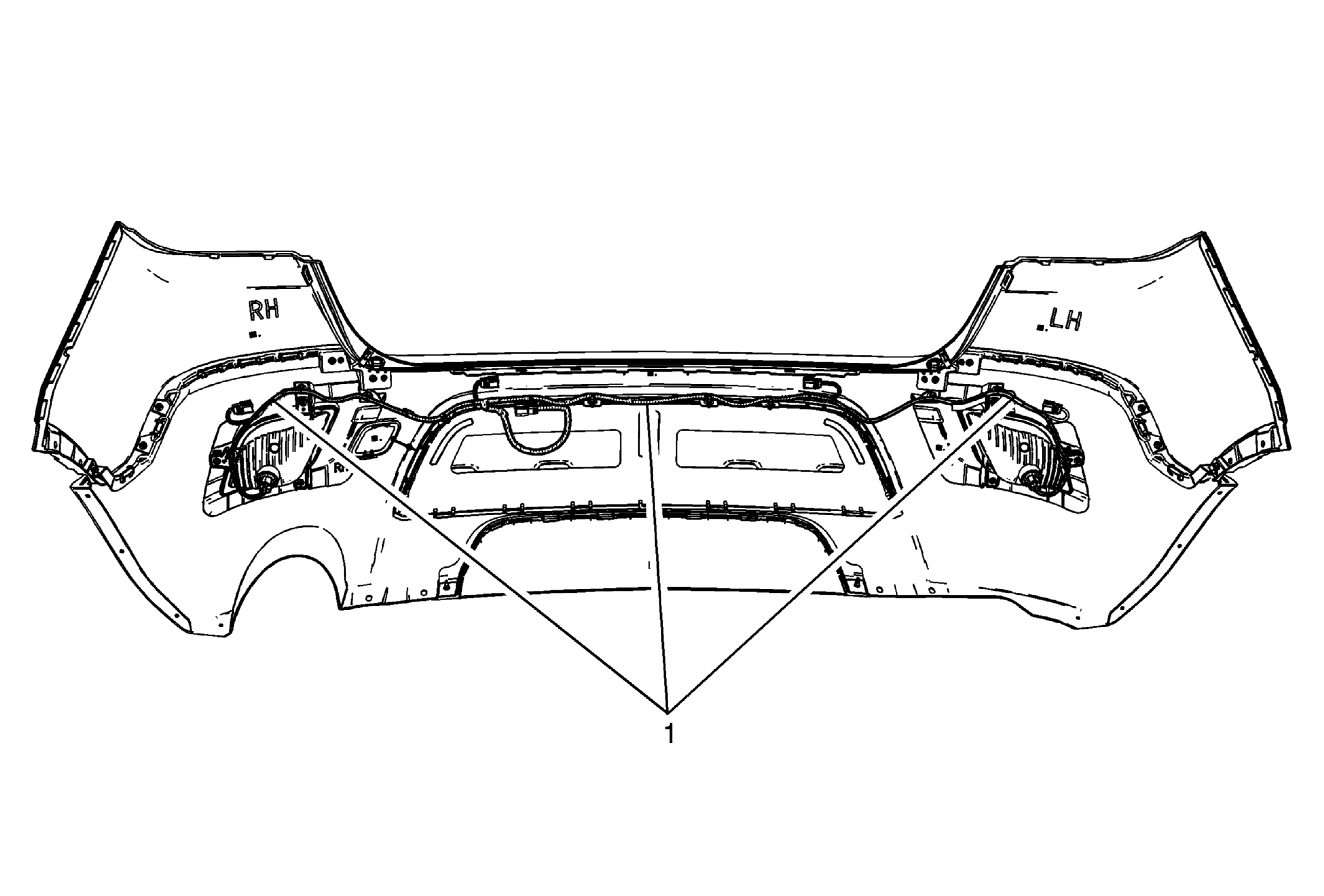

Fig 1: Rear Object Sensor Wiring Harness
GM2792116Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Chevrolet)Rear Bumper Fascia Replacement (Buick) .
1 Rear Object Sensor Wiring Harness

Procedure

  1. Disconnect the rear object sensor wiring harness electrical connectors from the rear object sensors.
  2. Disconnect the rear object sensor wiring harness electrical connectors from the rear lamps.
  3. Using a suitable tool, disconnect the rear object sensor wiring harness from the rear fascia.
