Rearview Driver Information Camera Replacement

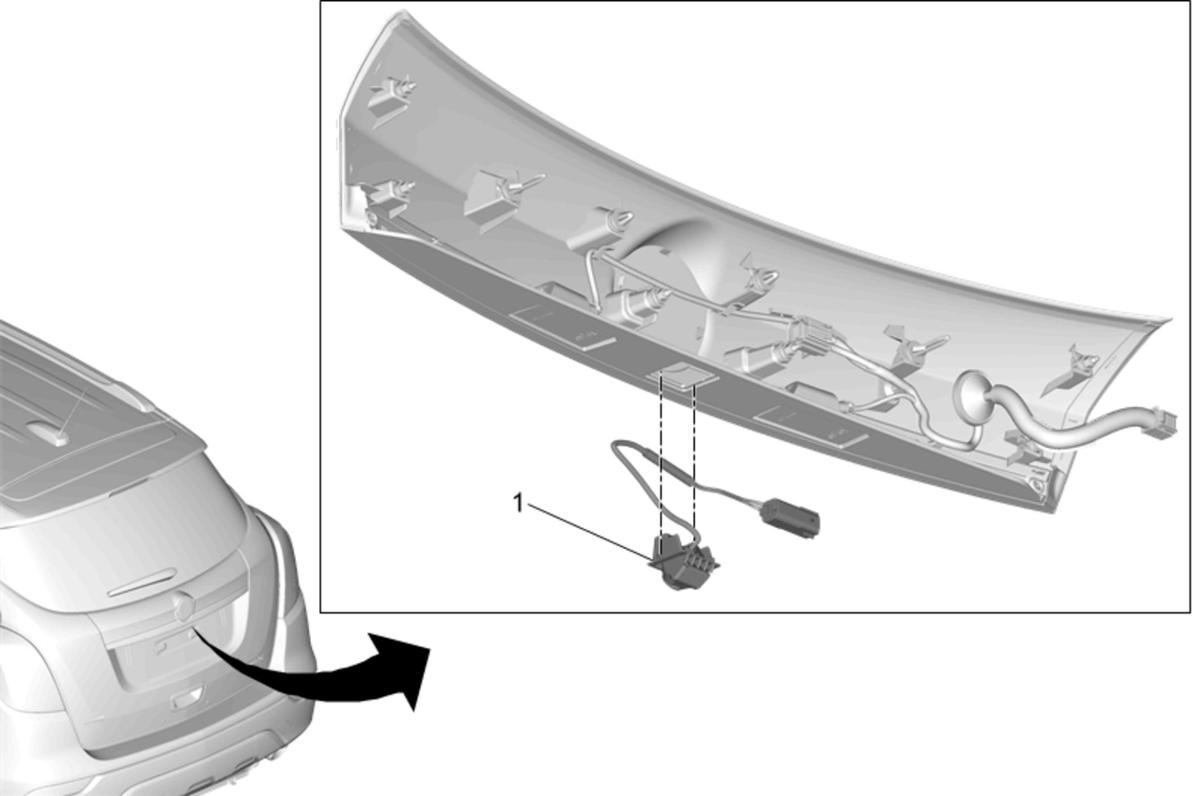

Fig 1: Rearview Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Liftgate Center Applique. Refer to Liftgate Center Applique Replacement (Chevrolet)Liftgate Center Applique Replacement (Buick)
1	Rearview Driver Information Camera Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Rearview Driver Information Camera

Procedure
