Side Object Sensing Alert Module Replacement

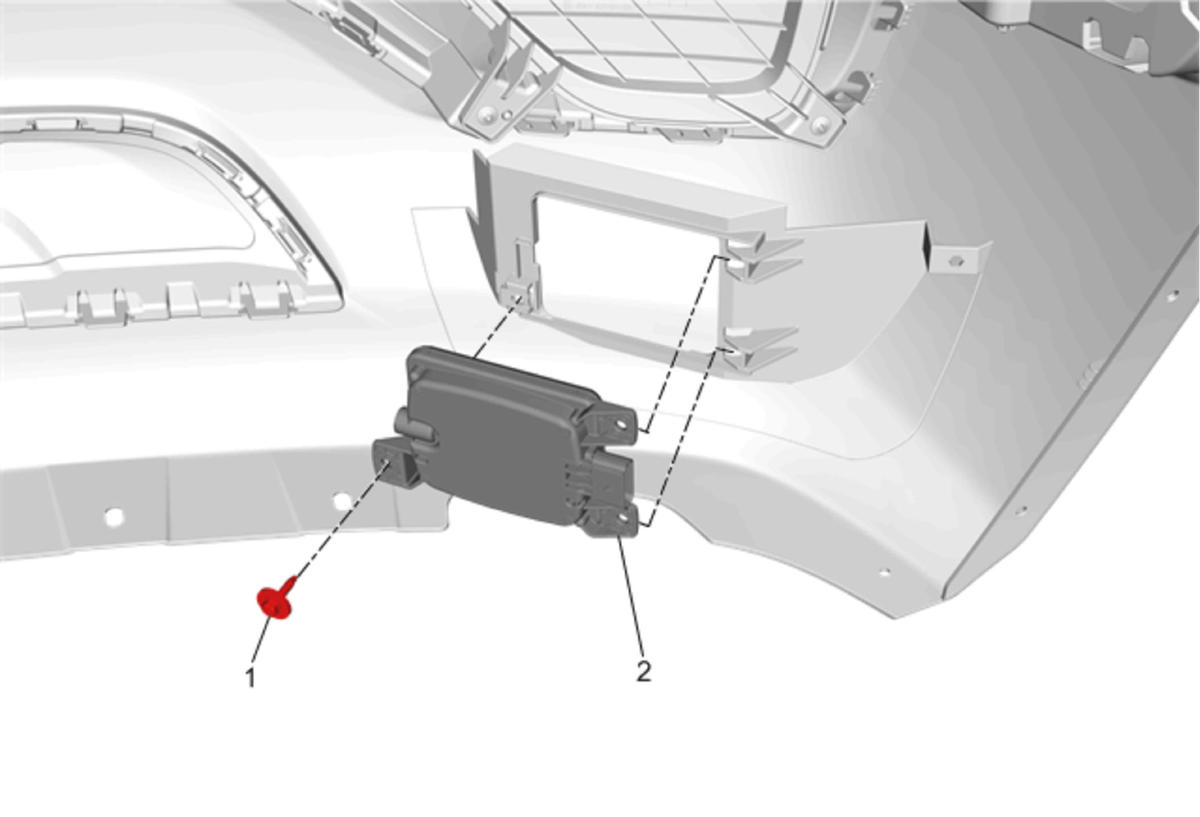

Fig 1: Side Object Sensing Alert Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Side Object Sensing Alert Module Bolt CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Side Object Sensing Alert Module Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References Lower the vehicle. Refer to Lifting and Jacking the Vehicle

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle

Side Object Sensing Alert Module Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Side Object Sensing Alert Module

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References
Lower the vehicle. Refer to Lifting and Jacking the Vehicle
