Human Machine Interface Control Module Bracket Replacement

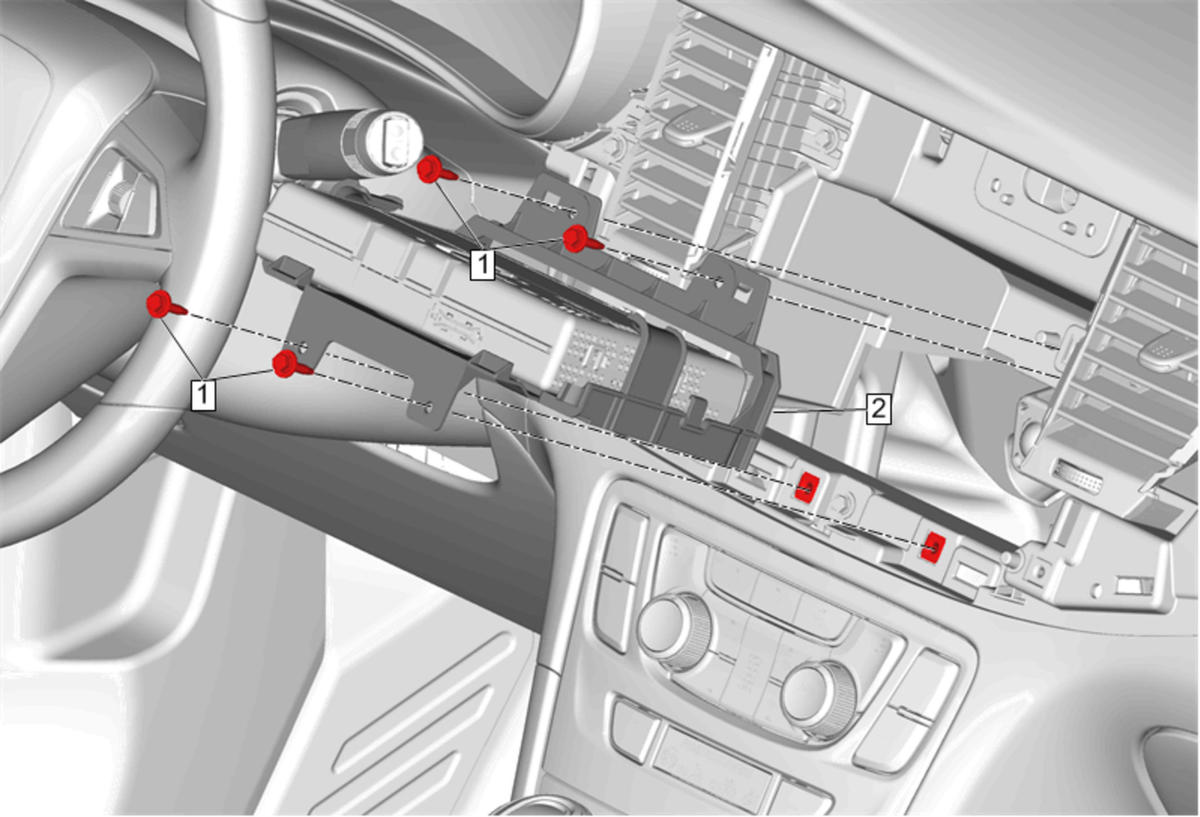

Fig 1: Human Machine Interface Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Radio Control Assembly. Refer to Radio Control Assembly Replacement (Buick)
1	Human Machine Interface Control Module Bracket Bolt (Qty: 4) CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Human Machine Interface Control Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove Radio Control Assembly. Refer to Radio Control Assembly Replacement (Buick)

Human Machine Interface Control Module Bracket Bolt (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Human Machine Interface Control Module Bracket

Procedure
