Keyless Entry Control Module Bracket Replacement

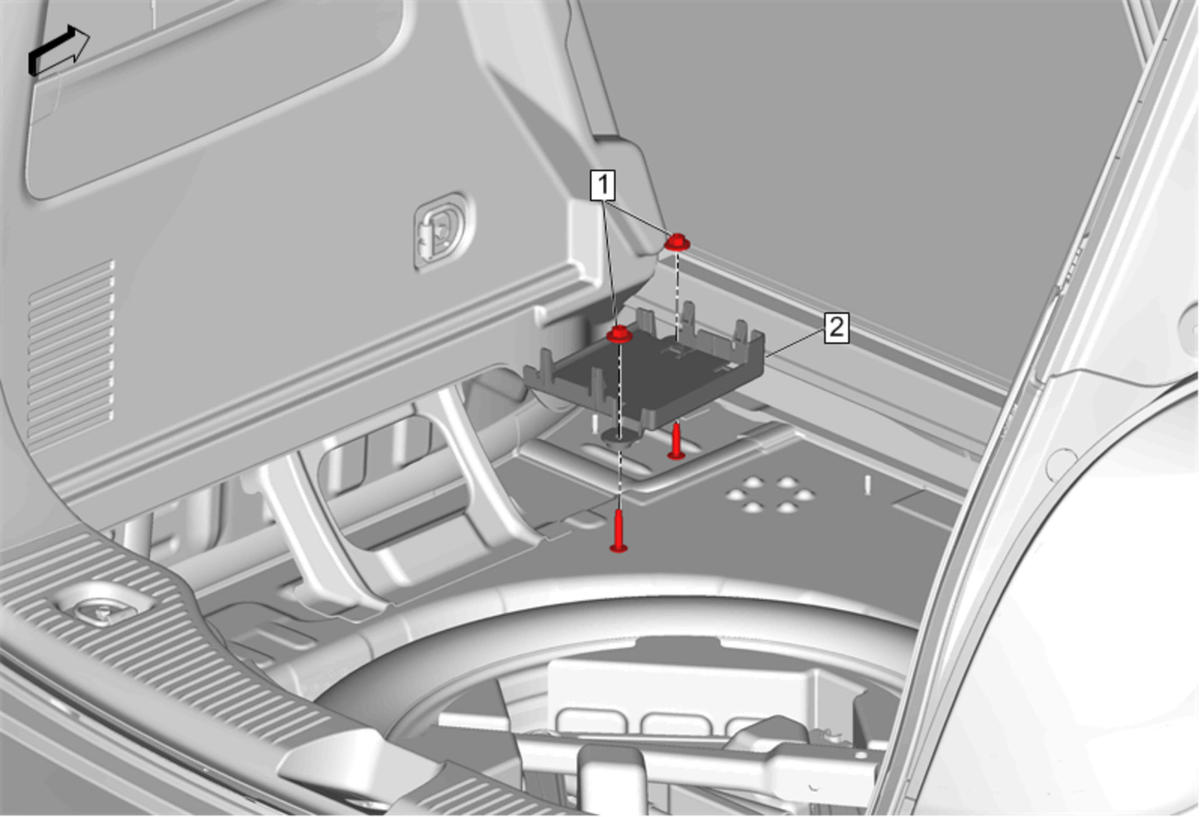

Fig 1: Keyless Entry Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Keyless Entry Control Module. Refer to Keyless Entry Control Module Replacement
1	Keyless Entry Control Module Bracket Nut (Qty: 2) CAUTION: Refer to Fastener Caution Tighten  9 N.m (80 lb in)
2	Keyless Entry Control Module Bracket
