Low Frequency Rear Bumper Antenna Replacement

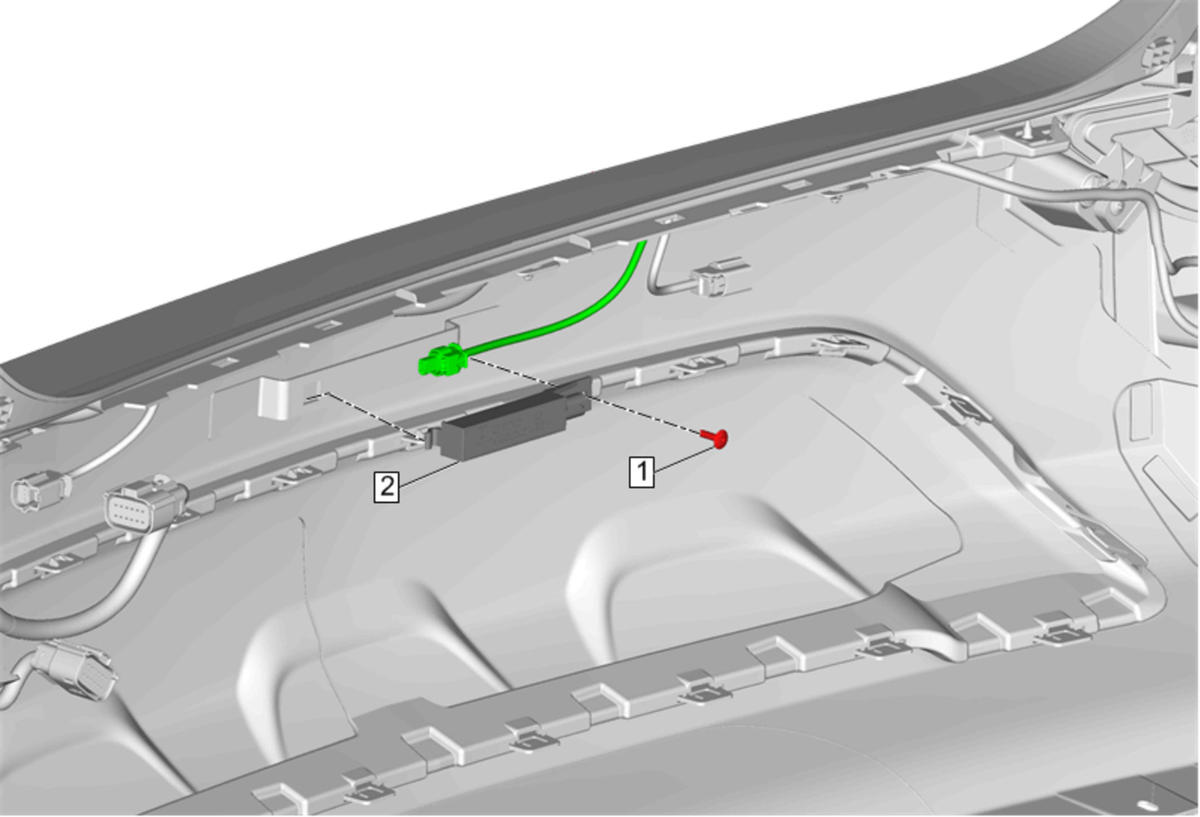

Fig 1: Low Frequency Rear Bumper Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement (Chevrolet)Rear Bumper Fascia Replacement (Buick) Disconnect the electrical connector.
1	Rivet WARNING: Refer to Eye Protection Warning . Procedure Drill out the rivet.
2	Low Frequency Rear Bumper Antenna Procedure Release the retaining tab.

Callout

Component Name

Preliminary Procedures

Rivet

WARNING:

Procedure
Drill out the rivet.

Low Frequency Rear Bumper Antenna
Procedure
Release the retaining tab.
