Keyless Entry (Chevrolet)

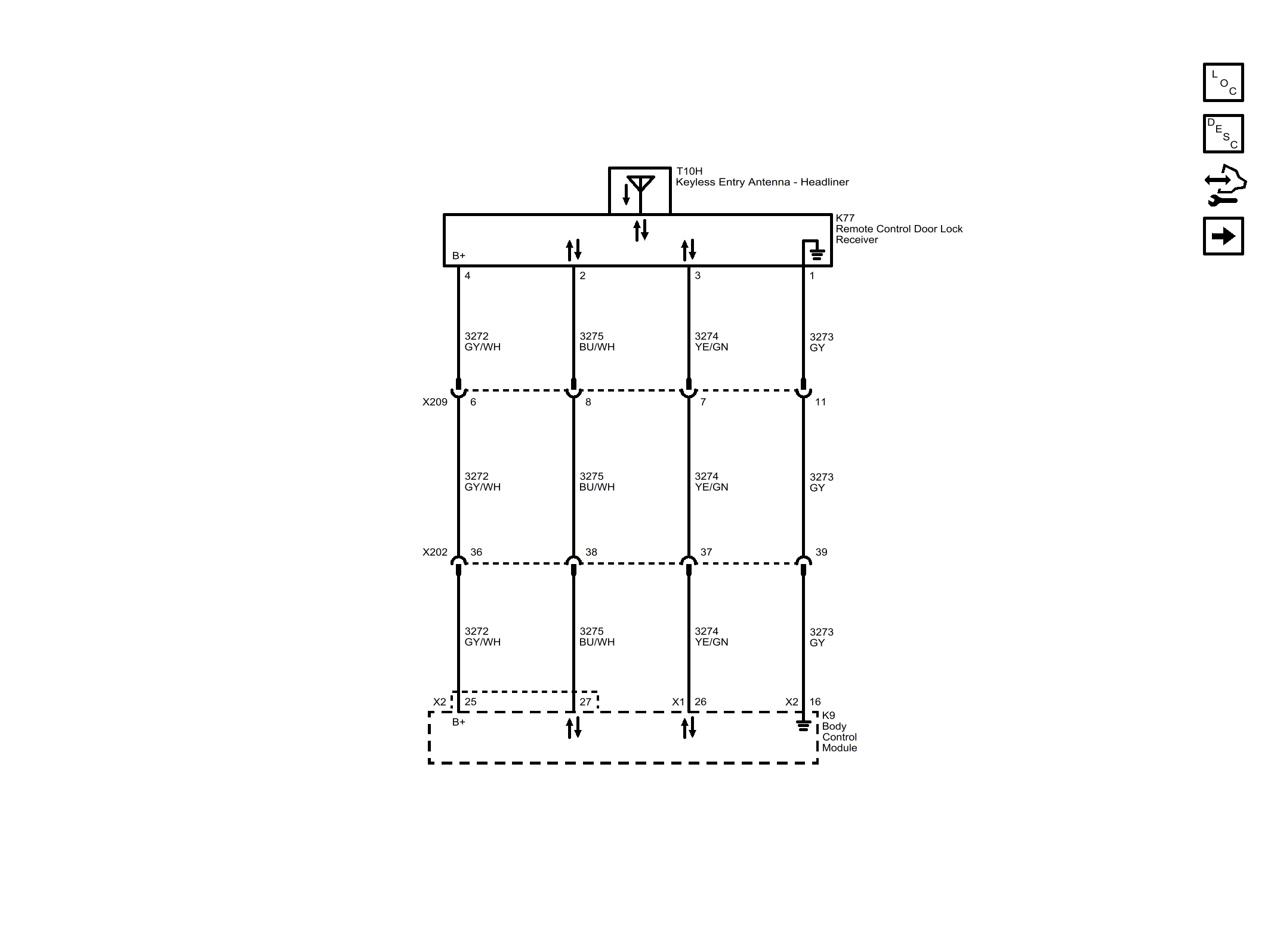

Fig 1: Keyless Entry (Chevrolet)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
