Front Side Door Window Regulator Replacement (Manual)

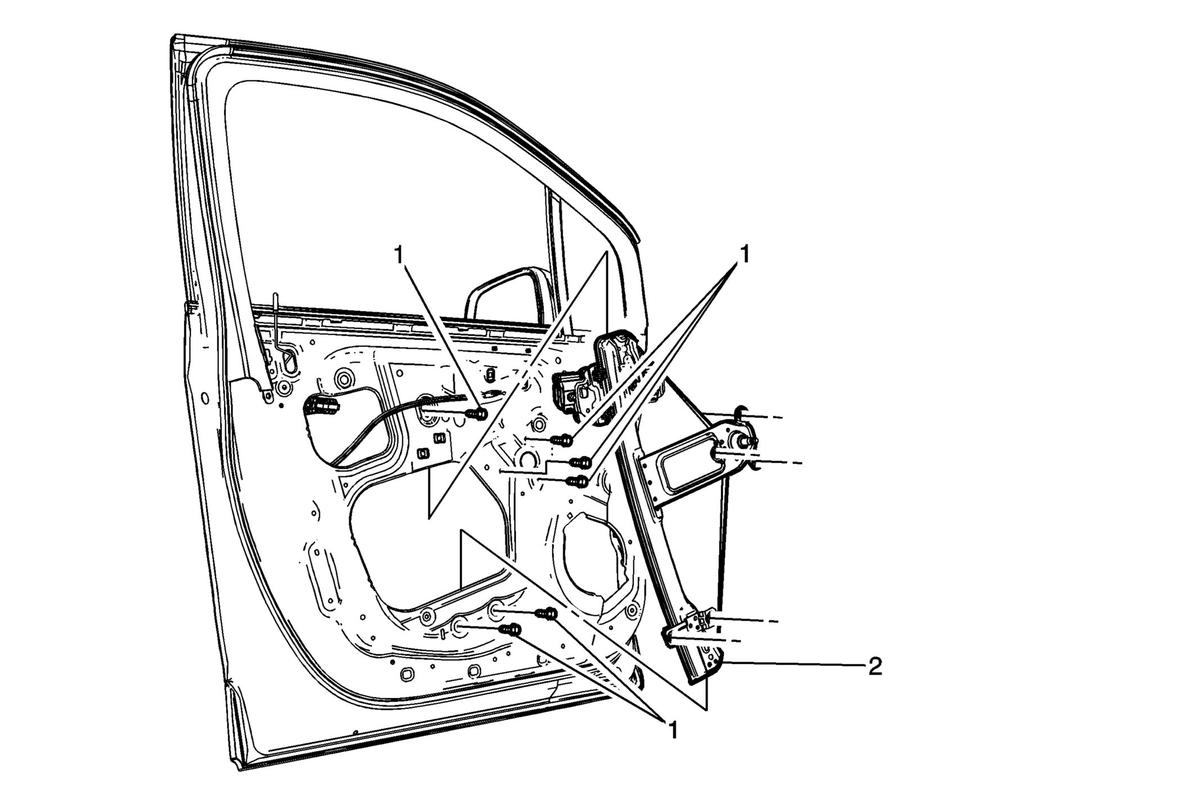

Fig 1: Front Side Door Window Regulator (Manual)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the front side door window from the window regulator guide nuts. Do Not remove the window from the vehicle, raise the window to the full up position, tape in place. Refer to Front Side Door Window Replacement .
1	Front Side Door Manual Window Regulator Screw (Qty: 5) CAUTION: Refer to Fastener Caution . Procedure Remove the front side door water deflector. Tighten 11 N.m (97 lb in)
2	Front Side Door Manual Window Regulator NOTE: Inspect the door window for proper operation before installing the door trim.
