Removal Procedure
WARNING:
Refer to Brake Dust Warning .
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Clean the wheel speed sensor mounting area on the steering knuckle of any accumulated dirt and debris.

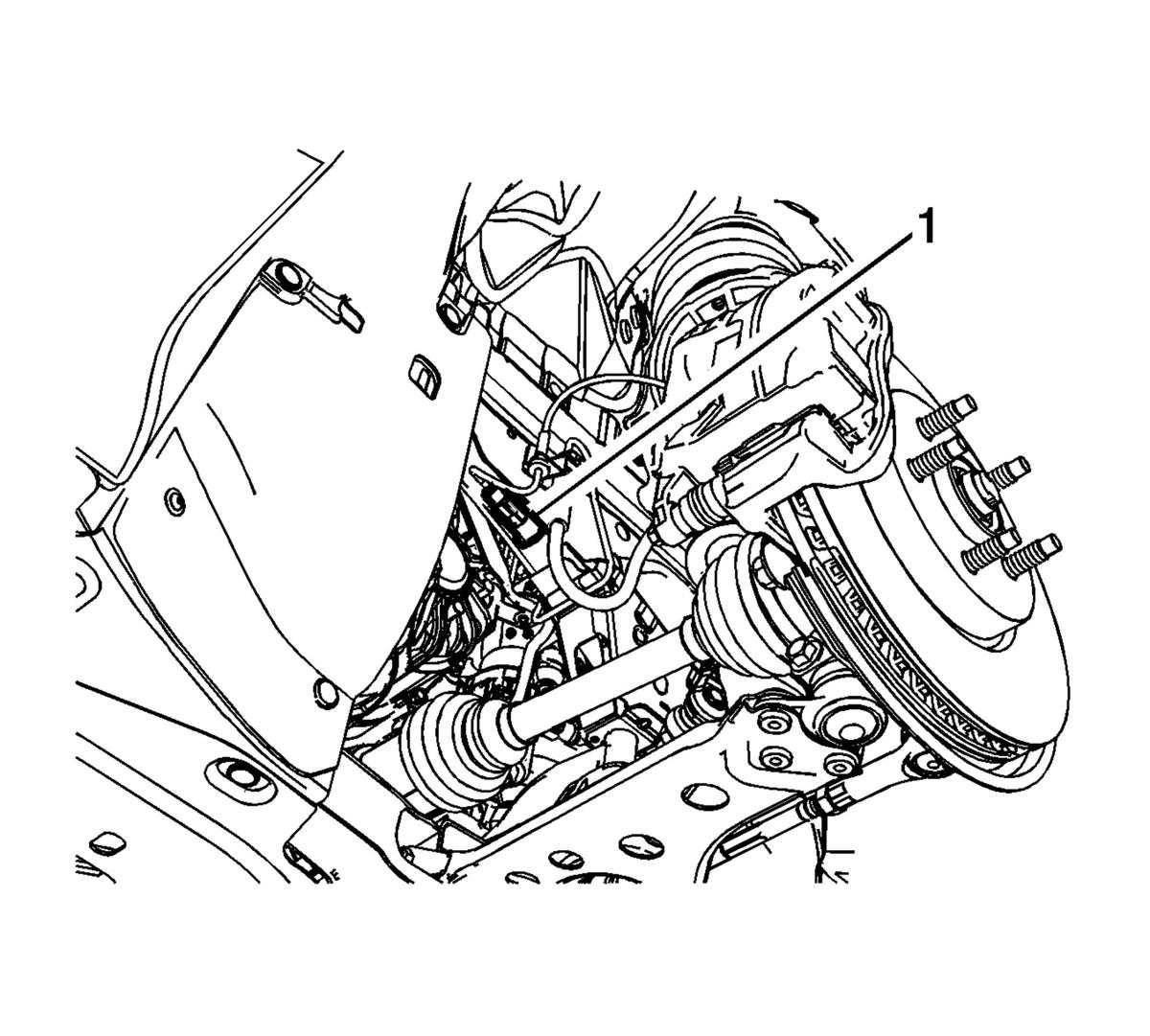

- Disconnect the wheel speed sensor electrical connector (1) and release the connector from the vehicle body.

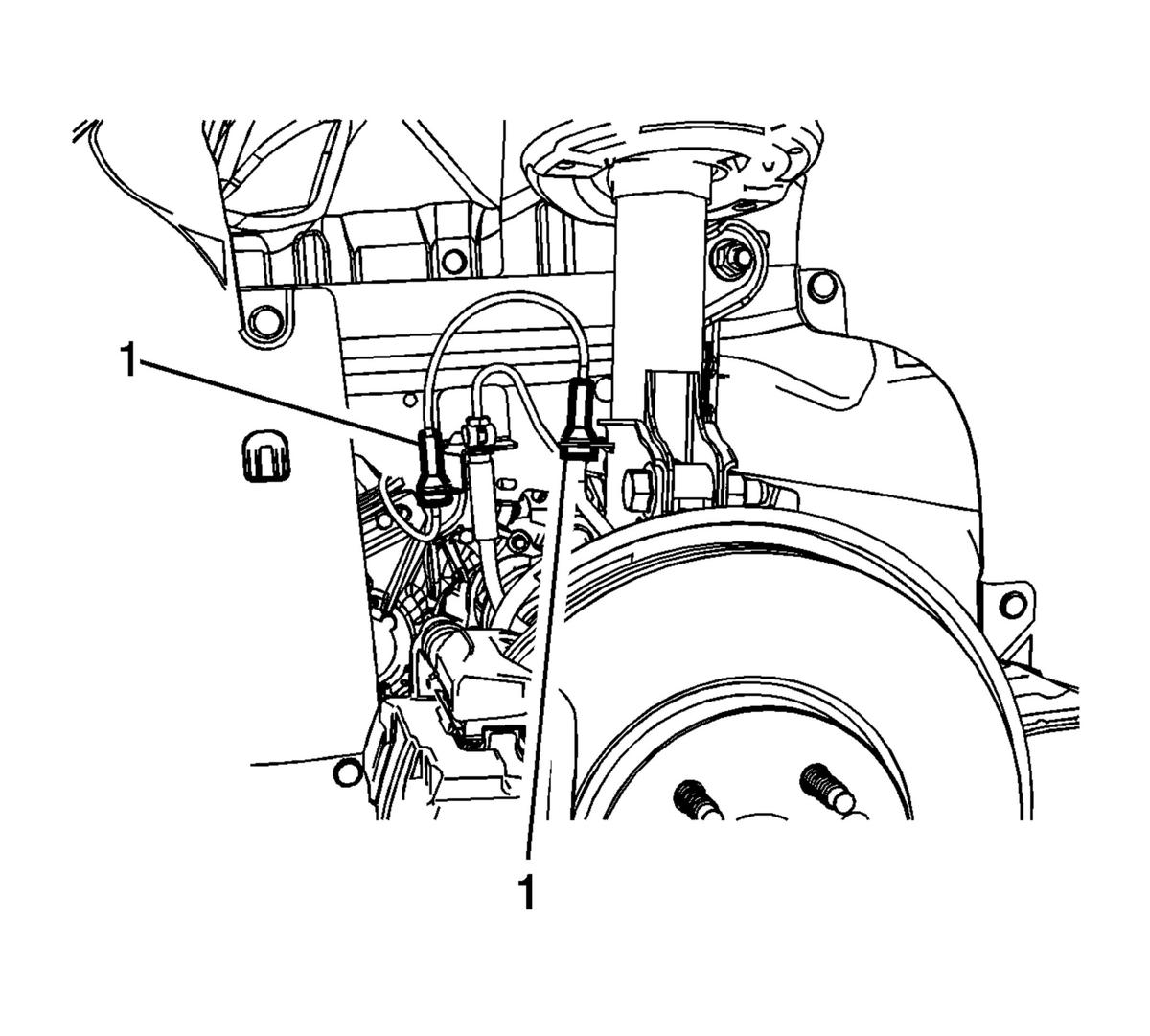

- Release the wheel speed sensor harness grommets (1) from the brake hose brackets.

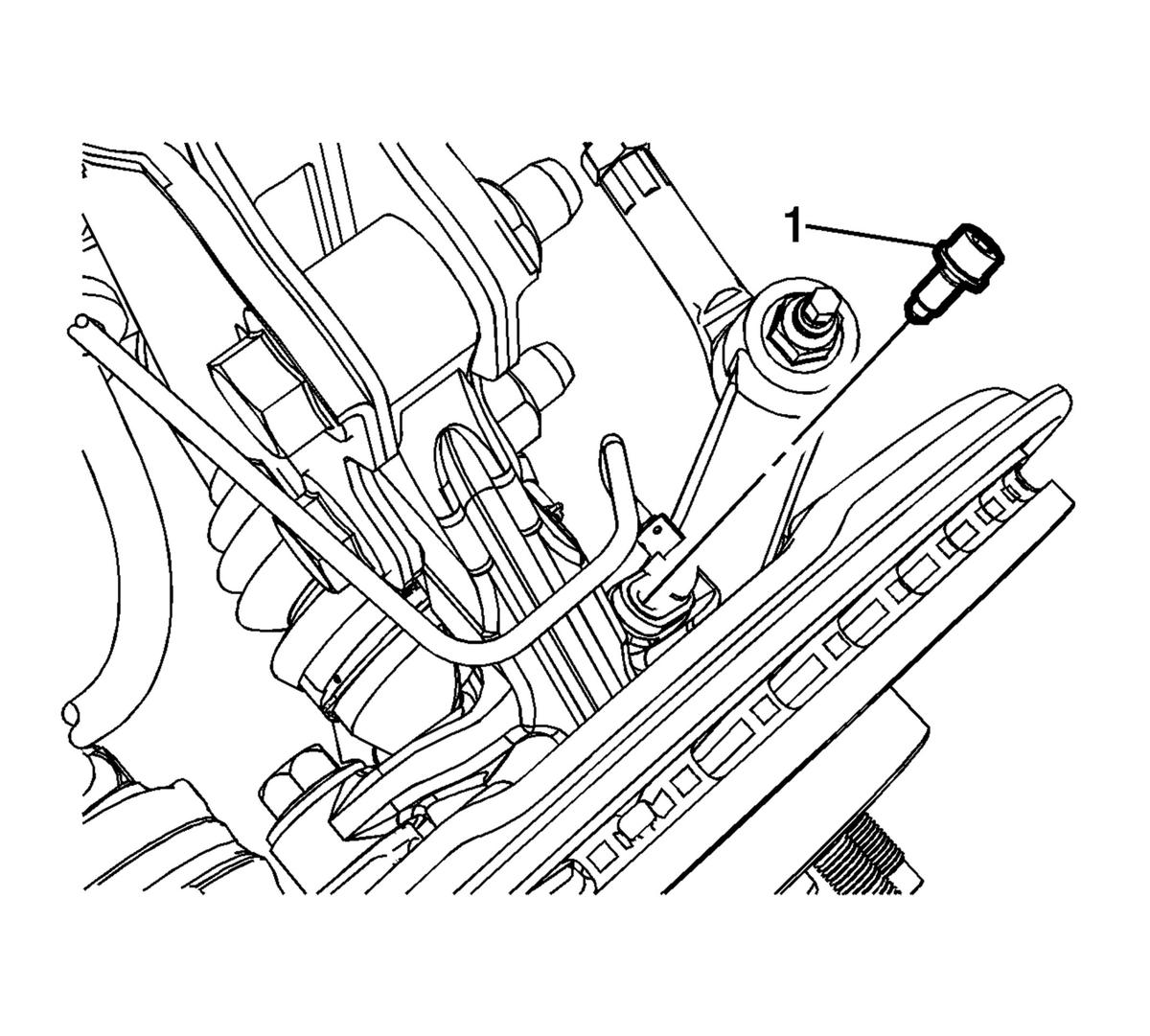

- Remove the wheel speed sensor bolt (1).

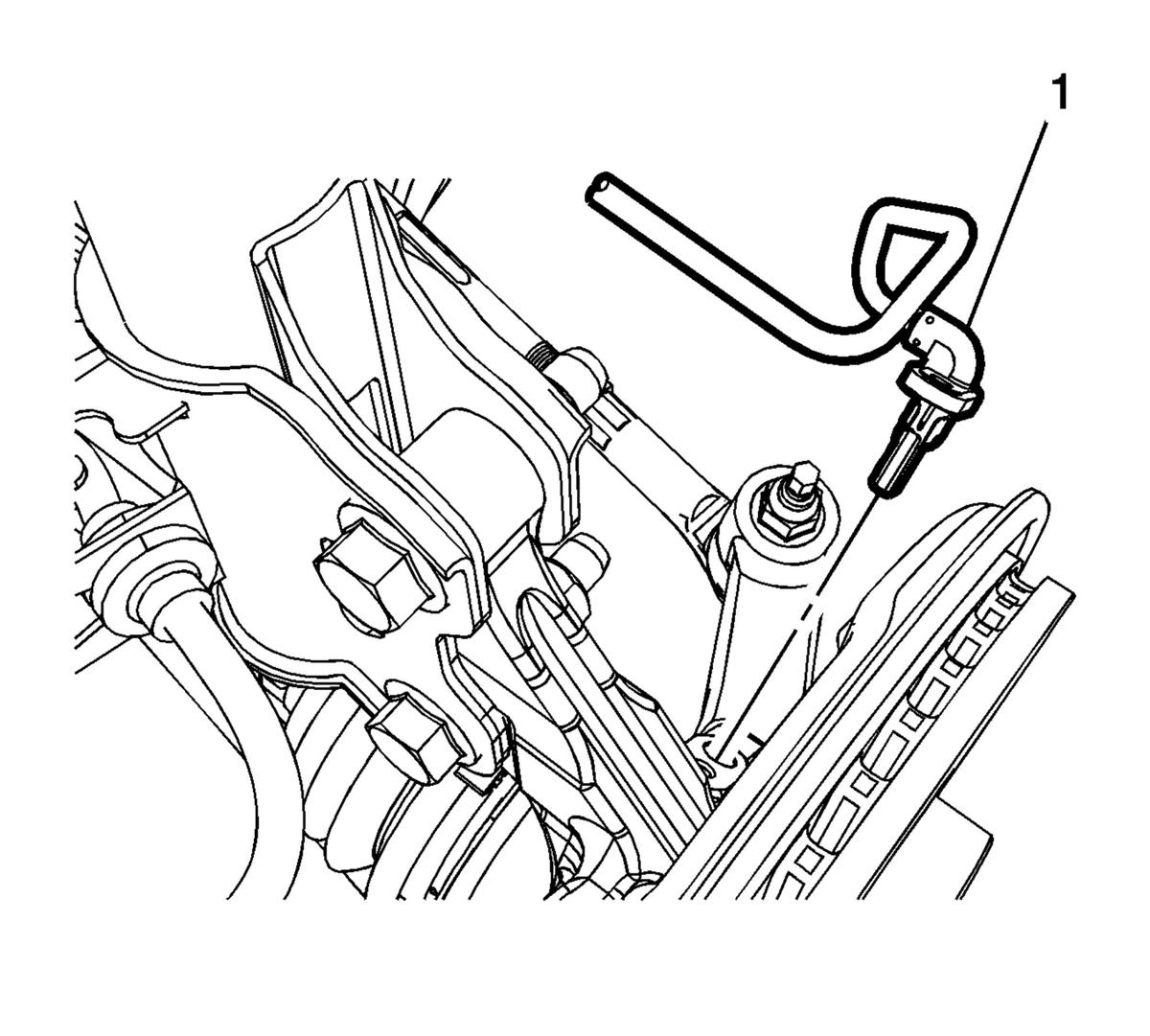

- Carefully remove the wheel speed sensor (1) from the steering knuckle by pulling the sensor straight upward using a slight twisting motion.
