Front Compartment Fuse Block Replacement

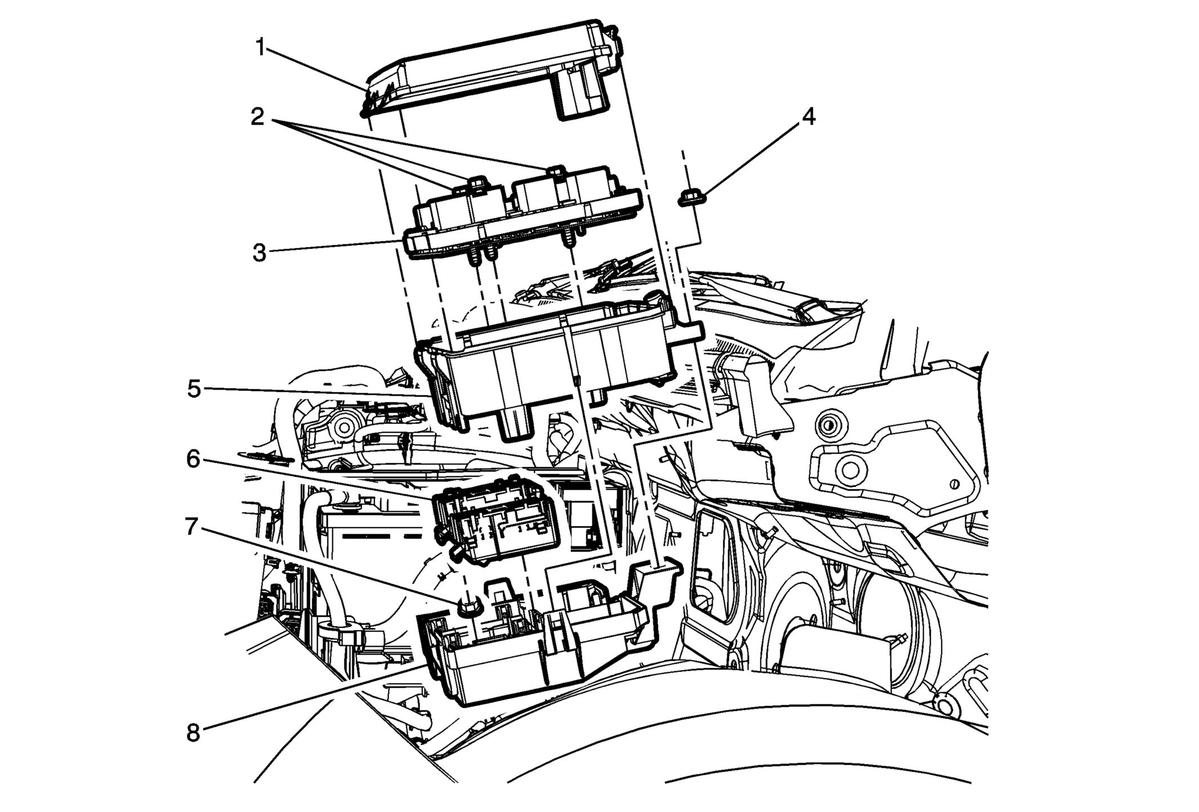

| Callout | Component Name |
|---|---|
| 1 | Front Compartment Fuse Block Cover Procedure Remove the accessory wiring junction block cover by pushing in on the 3 retainer tabs located on the ends of the cover and lift. To reinstall, fit together the retainer tabs located on the ends of the cover and push down on the cover until the tabs on the ends of the cover lock into place. |
| 2 | Front Compartment Fuse Block Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Front Compartment Fuse Block Fuse Assembly Procedure Disconnect the positive battery cable. |
| 4 | Front Compartment Fuse Block Cover Bracket Nut Tighten 9 N.m (80 lb in) |
| 5 | Front Compartment Fuse Block Procedure Release the front compartment fuse block retainer by pushing in on the 2 retainer tabs located on the front and rear sides of the retainer and lift. To reinstall, fit together the retainer tabs located on the front and rear sides of the retainer and press down on the retainer until the tabs on the sides of the cover lock into place. |
| 6 | Front Compartment Fuse Block Harness Procedure Lift up and out from the fuse block base. |
| 7 | Front Compartment Fuse Block Base Nut Tighten 9 N.m (80 lb in) |
| 8 | Front Compartment Fuse Block Base Procedure
|
