Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9)

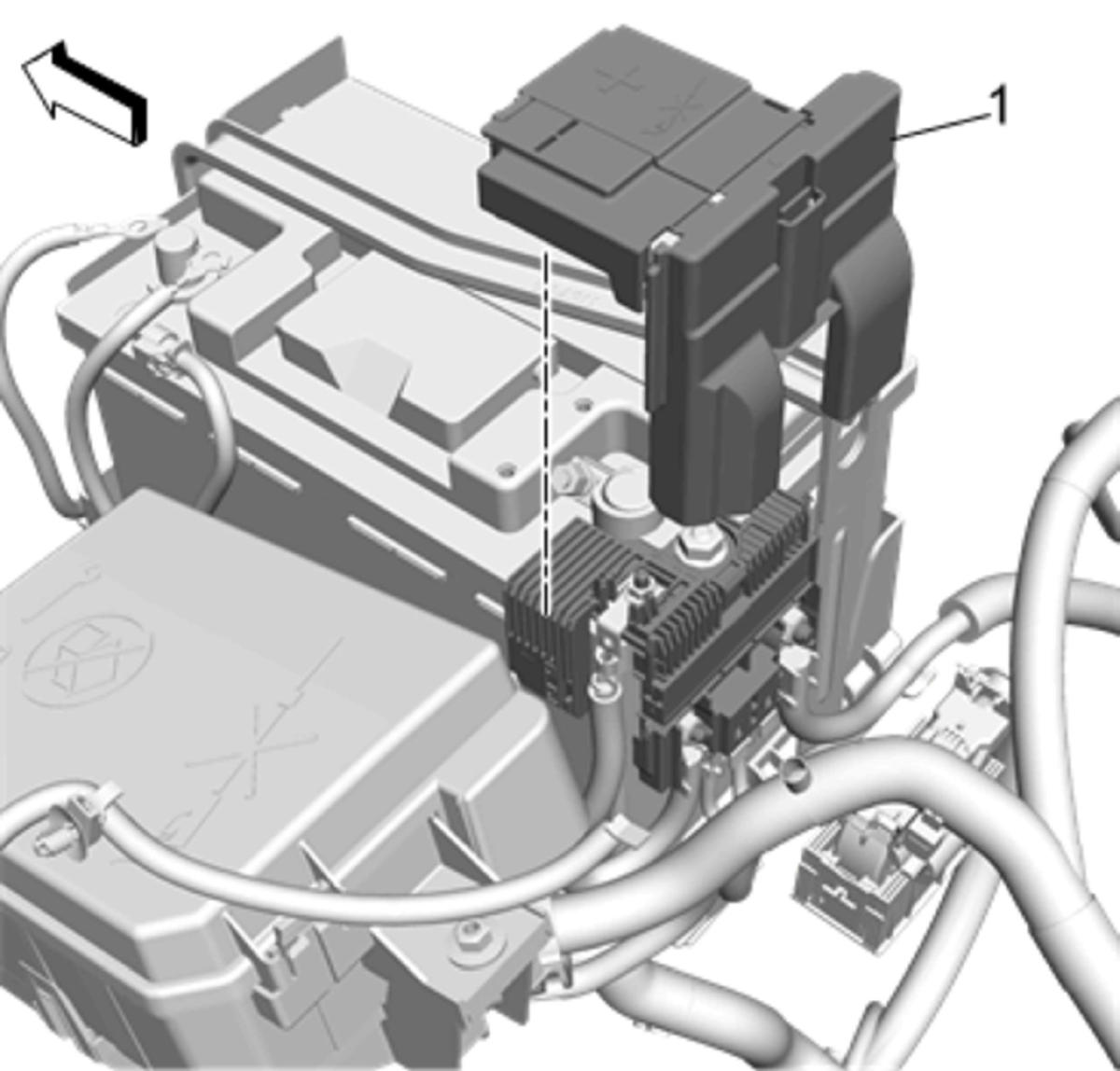

    2. Fig 1: Battery Positive Cable Junction Block Cover
    GM4751259Courtesy of GENERAL MOTORS COMPANY
  2. Remove Battery Positive Cable Junction Block Cover (1)

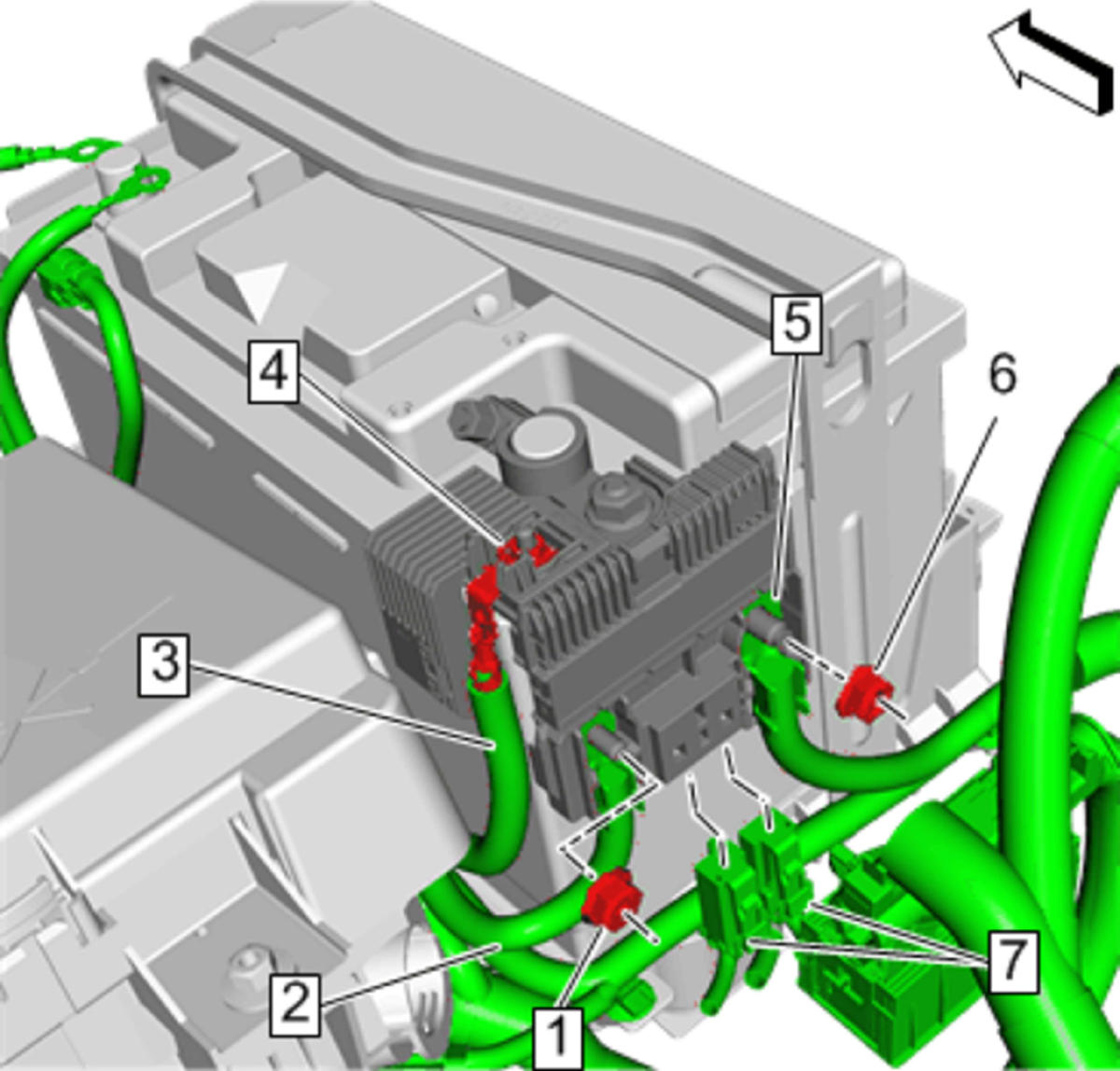

    3. Fig 2: Body Harness, Battery Positive Cables, Nuts And Electrical Connectors
    GM4751260Courtesy of GENERAL MOTORS COMPANY
  3. Loosen Body Harness Terminal Nut (4)
  4. Remove Body Harness (3)
  5. Remove Battery Positive Cable Nut (1)
  6. Remove Battery Positive Cable (2)
  7. Remove Battery Positive Cable Nut (6)
  8. Remove Battery Positive Cable (5)
  9. Disconnect Electrical Connectors (7) (Qty: 2)

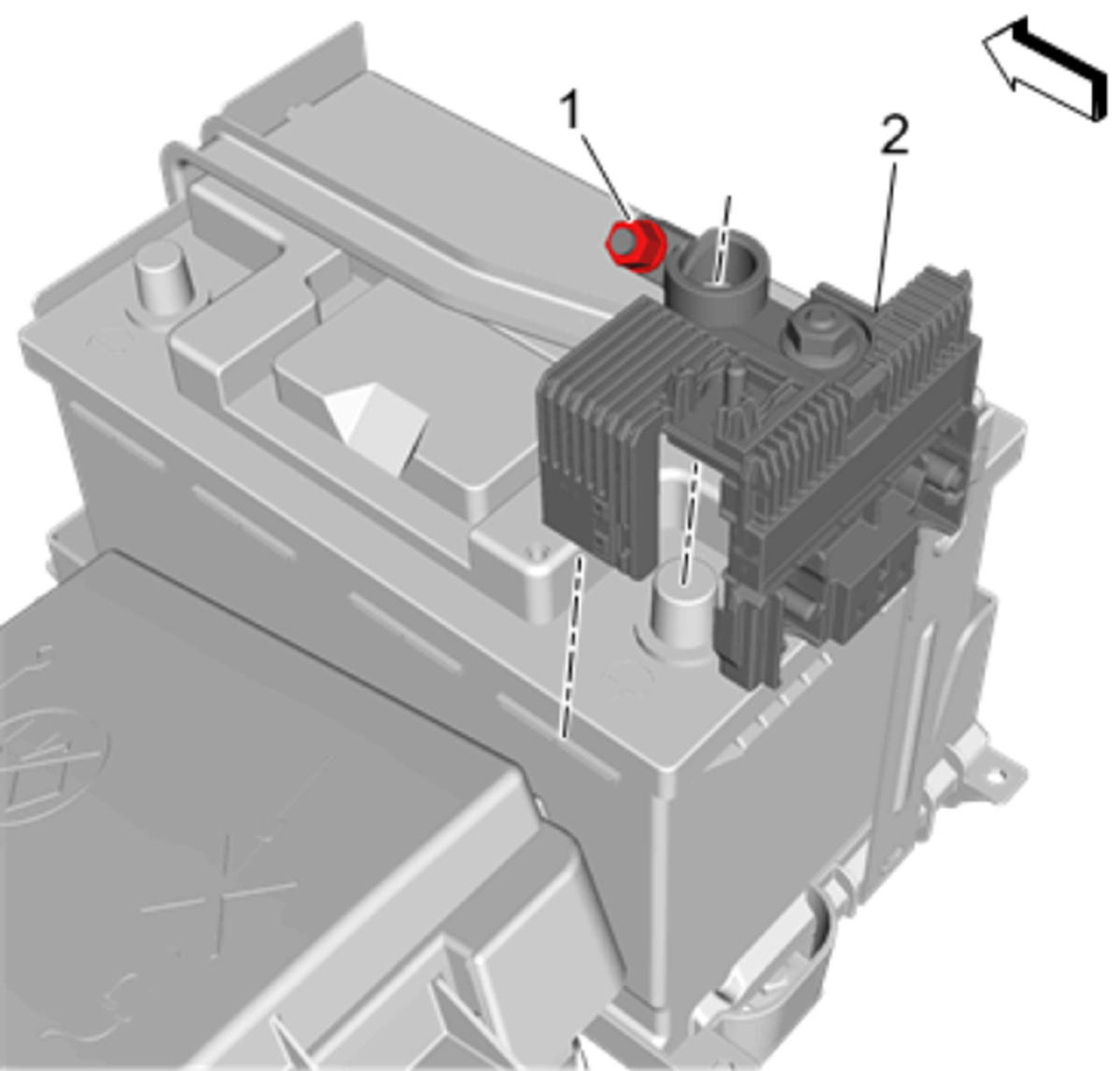

    10. Fig 3: Battery Positive Cable Junction Block And Positive Post Clamp Nut
    GM4751262Courtesy of GENERAL MOTORS COMPANY
  10. Loosen Battery Positive Post Clamp Nut (1)
  11. Remove Battery Positive Cable Junction Block (2)
