Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9)
    2. Fig 1: Battery Negative Cable And Fastener

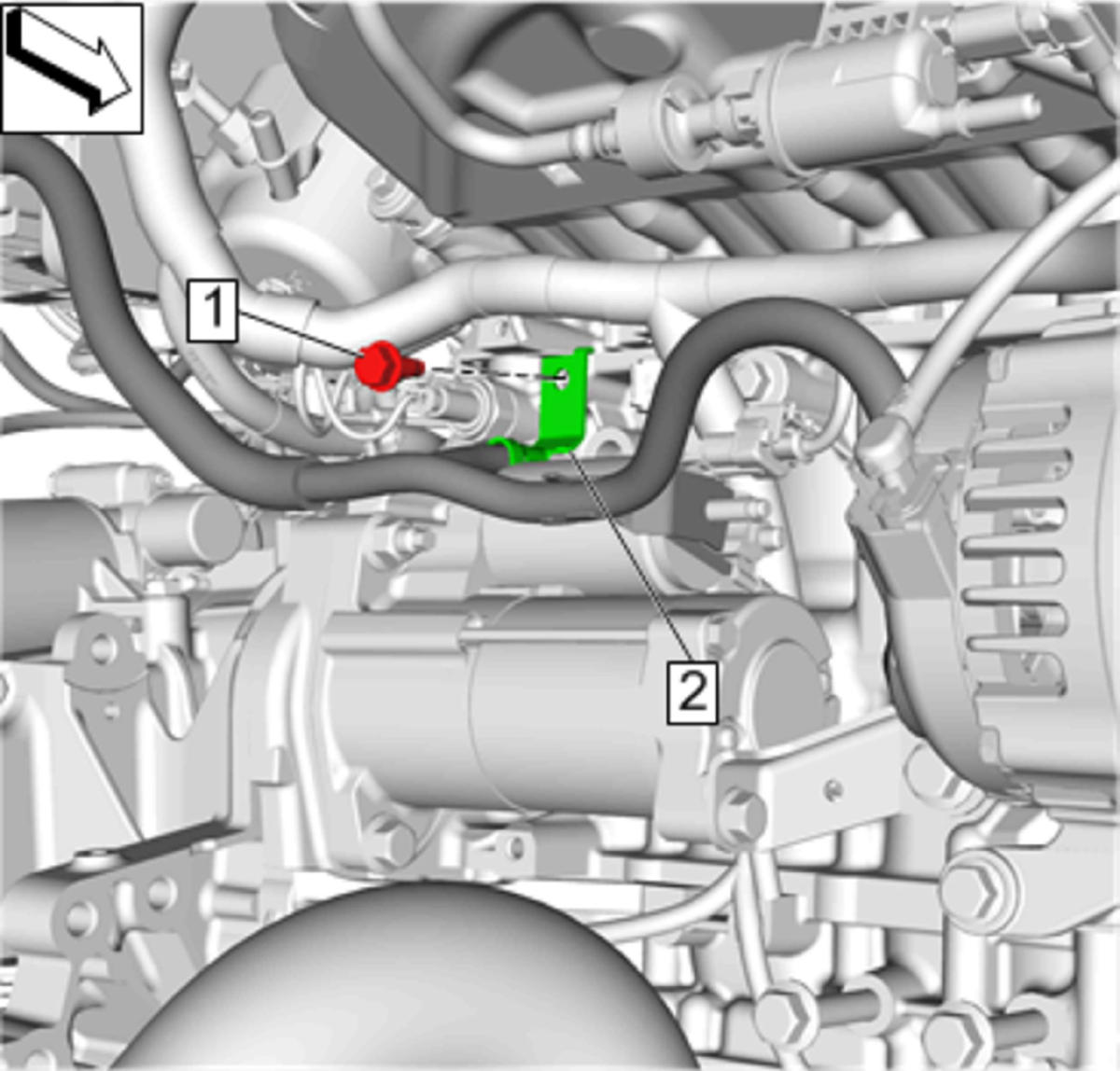

    GM4109441Courtesy of GENERAL MOTORS COMPANY
  2. Remove Battery Negative Cable Ground Fastener (1)
  3. Remove Battery Negative Cable (2)
    4. Fig 2: Battery Positive Cable And Nut

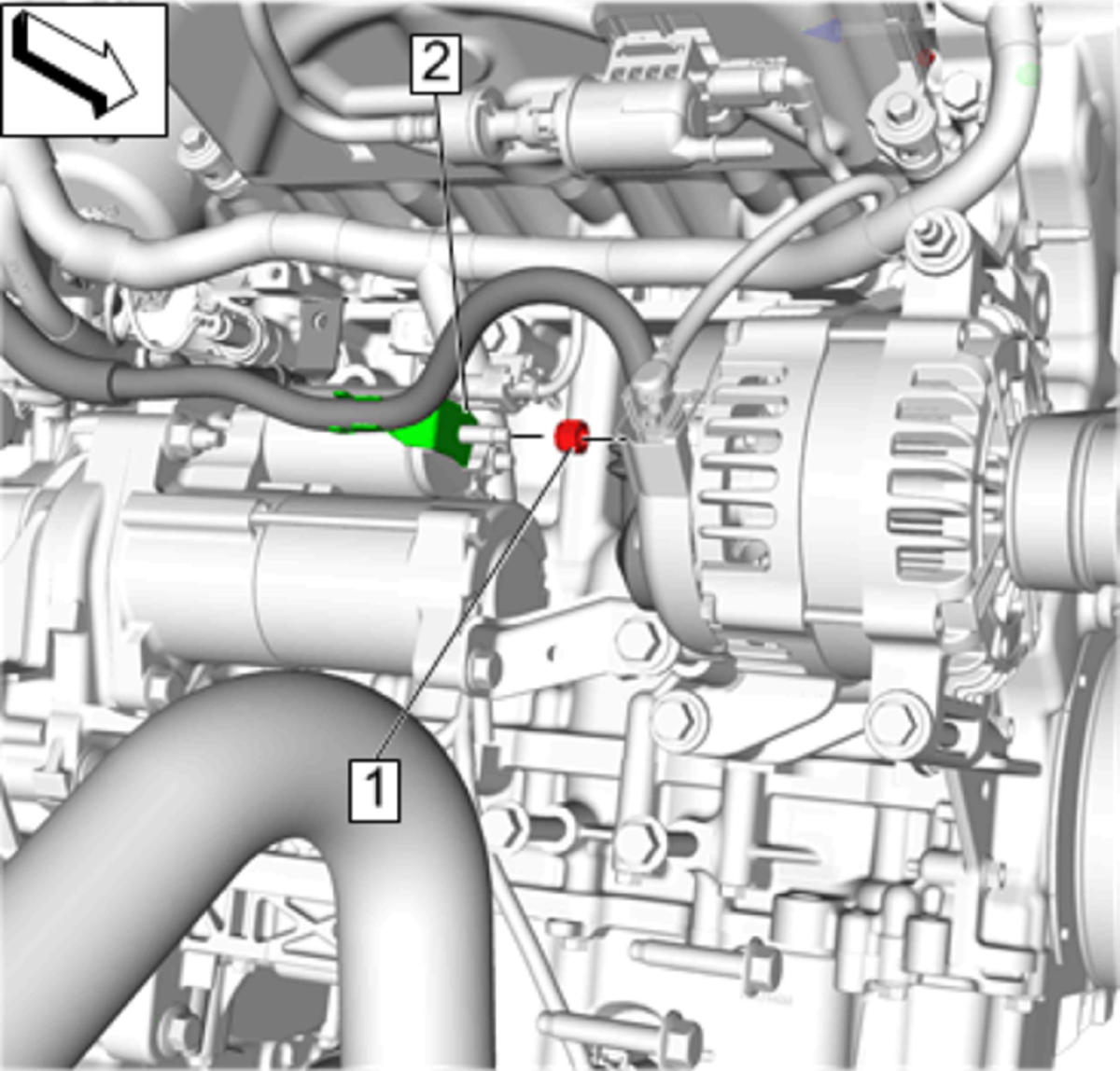

    GM4109448Courtesy of GENERAL MOTORS COMPANY
  4. Remove Starter Solenoid Cable Nut (1)
  5. Remove Battery Positive Cable (2)
    6. Fig 3: Battery Positive Cable, Protective Cap And Nut

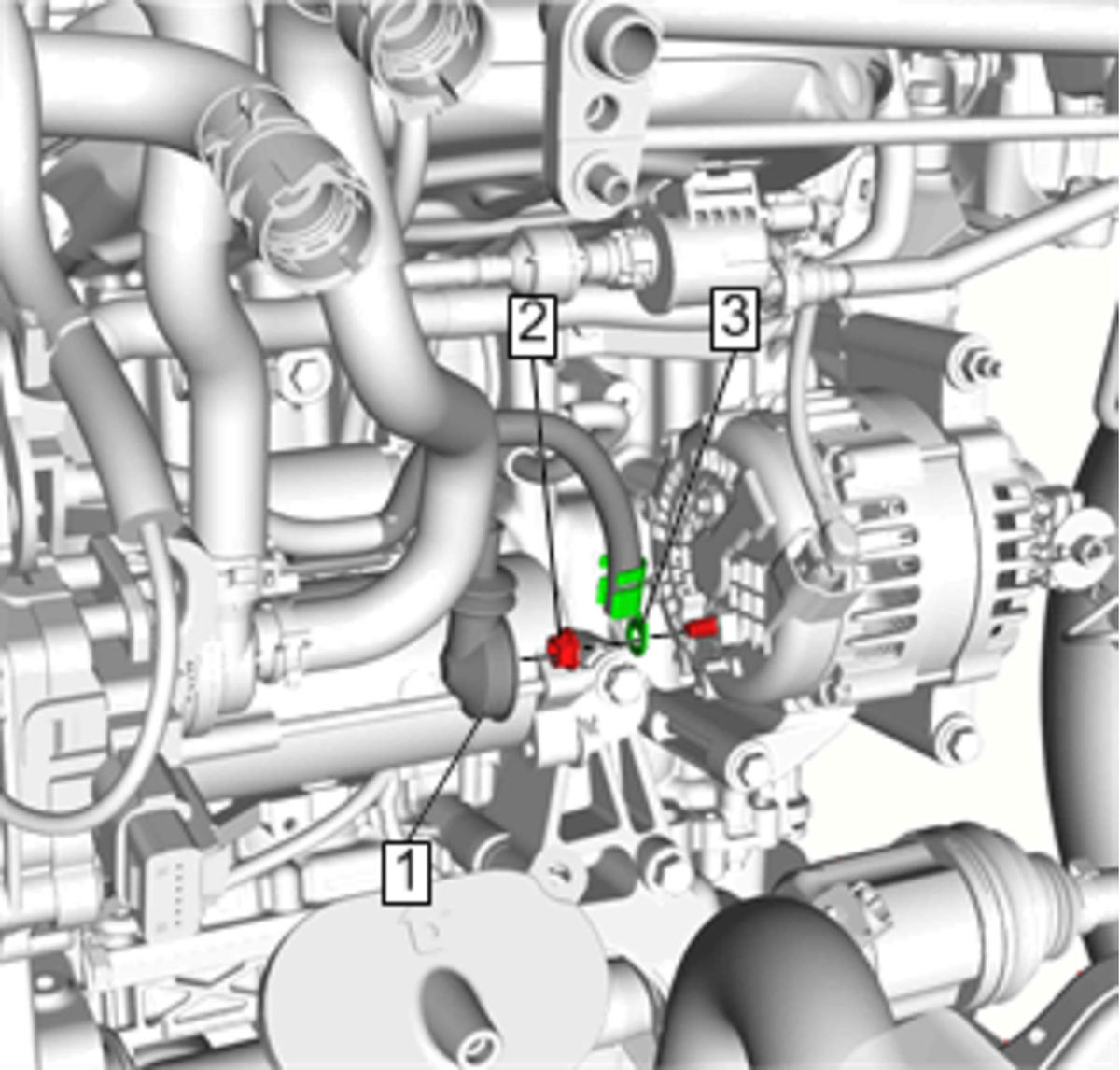

    GM4109451Courtesy of GENERAL MOTORS COMPANY
  6. Remove the positive battery cable protective cap from the generator terminal (1).
  7. Remove Battery Positive Cable Nut (2)
  8. Remove Battery Positive Cable (1)
    9. Fig 4: Power Distributor Fuse Block Cover, Battery Positive Cable And Nut

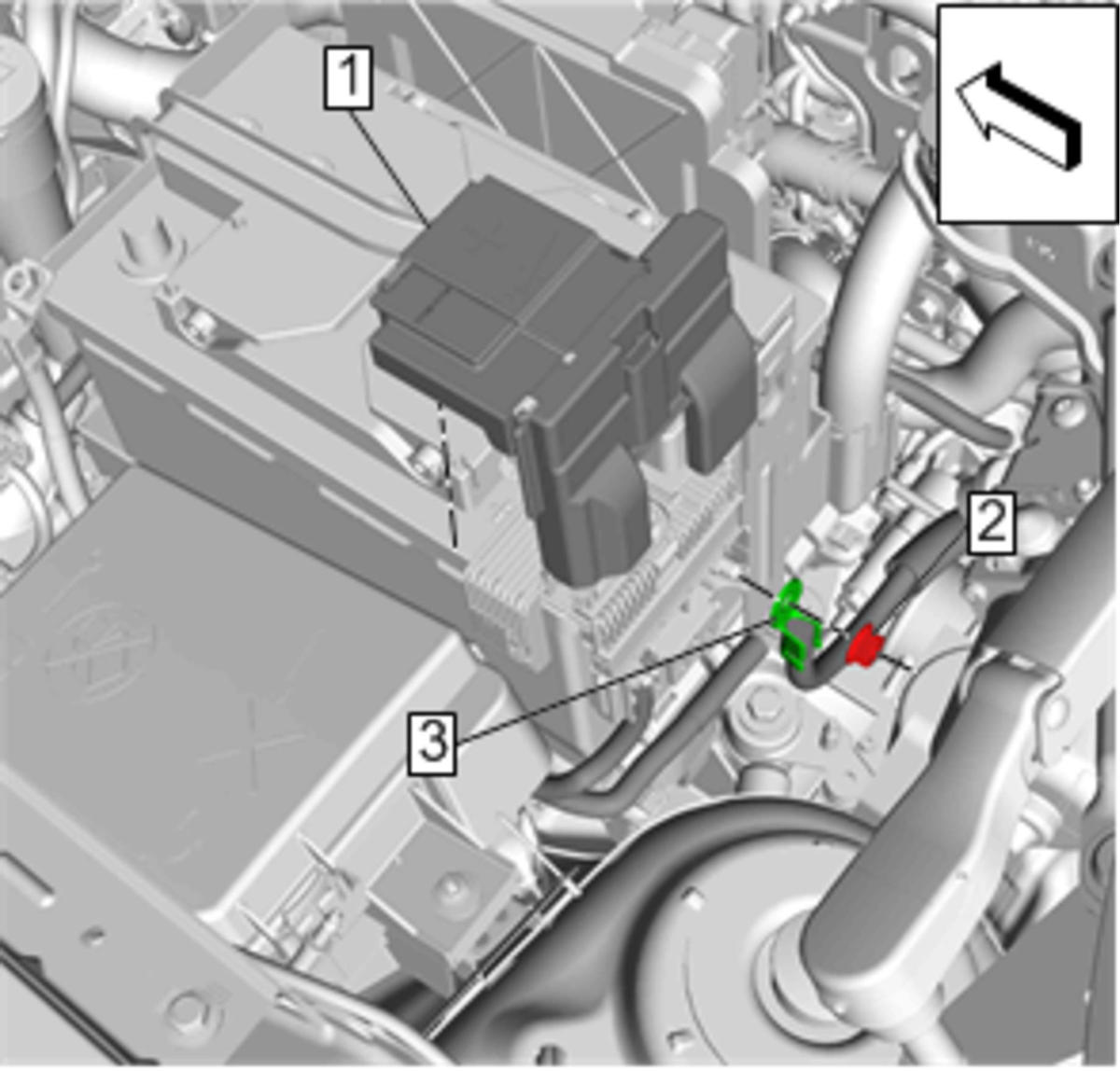

    GM4109639Courtesy of GENERAL MOTORS COMPANY
  9. Remove Power Distributor Fuse Block Cover (1)
  10. Remove Battery Fuse Block Battery Positive Cable Nut (2)
  11. Remove Battery Positive Cable (3)
  12. Remove the battery tray. Refer to Battery Tray Replacement
    13. Fig 5: Battery Negative Cable And Fastener

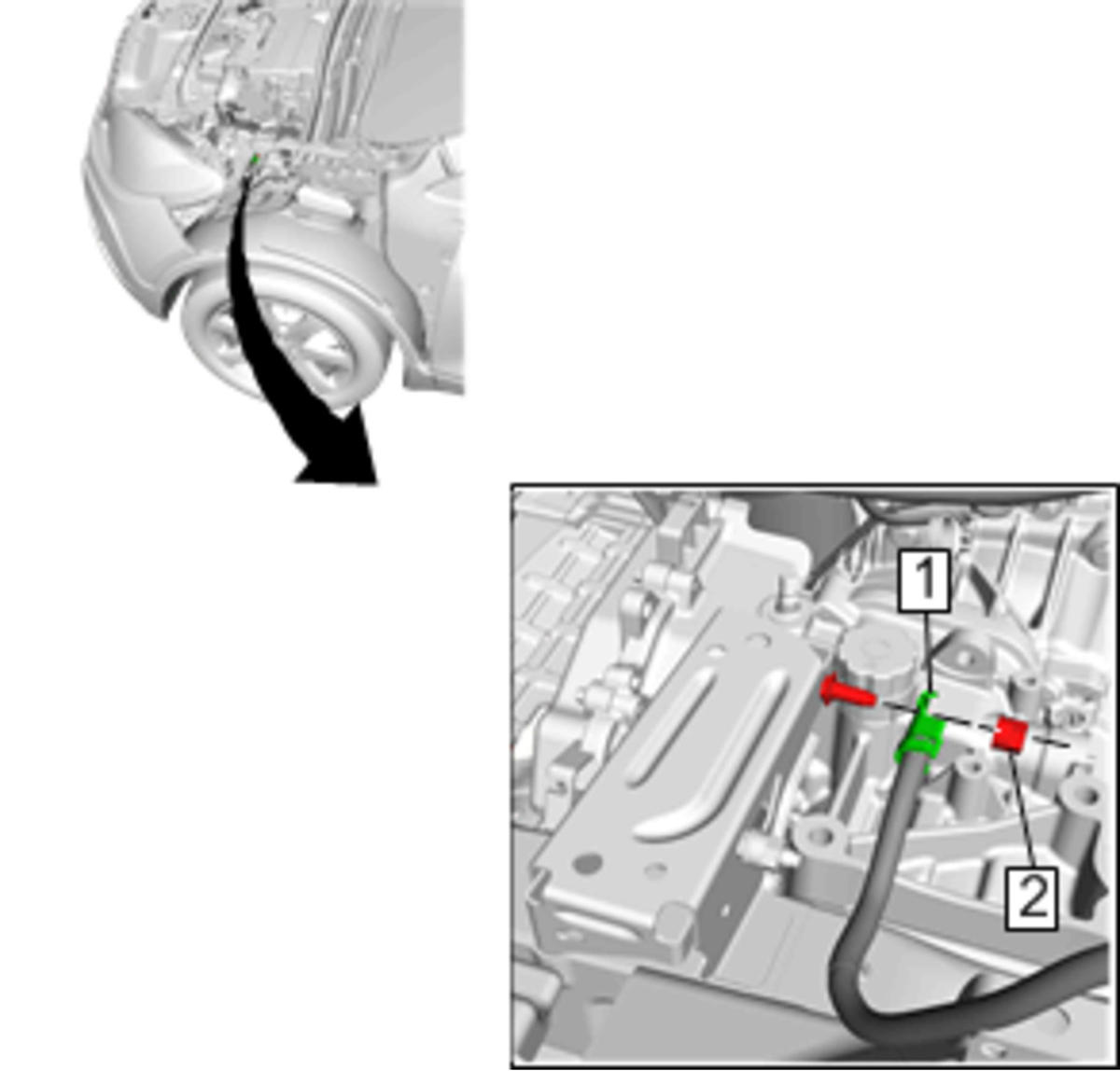

    GM4109640Courtesy of GENERAL MOTORS COMPANY
  13. Remove Battery Negative Cable Frame Ground Fastener (2)
  14. Remove Battery Negative Cable (1)
    15. Fig 6: Battery Positive And Negative Cable

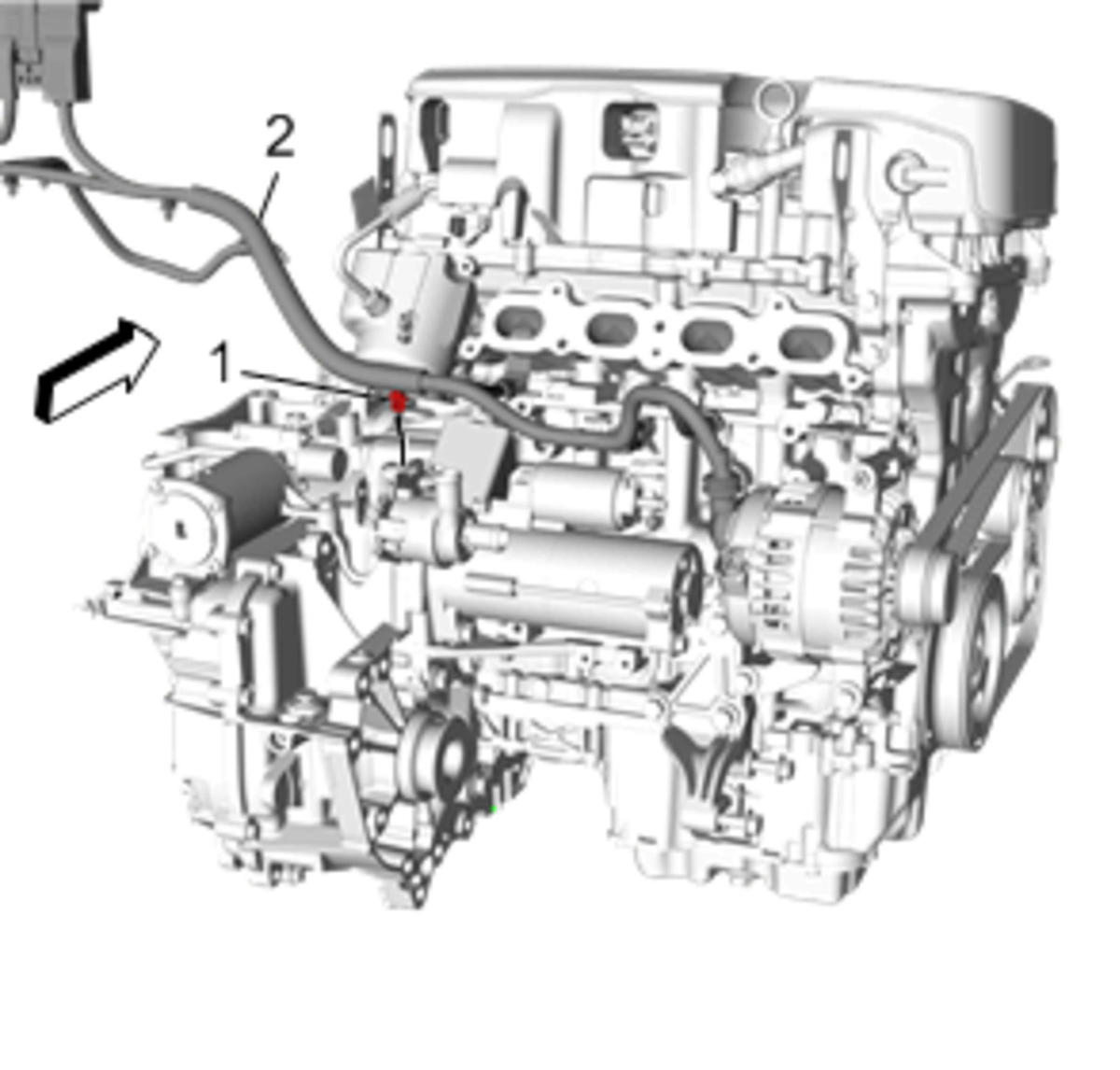

    GM4109453Courtesy of GENERAL MOTORS COMPANY
  15. Remove the Battery Positive and Negative Cable Retainer (1).
  16. Remove the battery positive and negative cable (2).
