Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9) .
  2. Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  4. Remove the drivetrain and front suspension frame transmission protector. Refer to Drivetrain and Front Suspension Frame Transmission Protector Replacement .

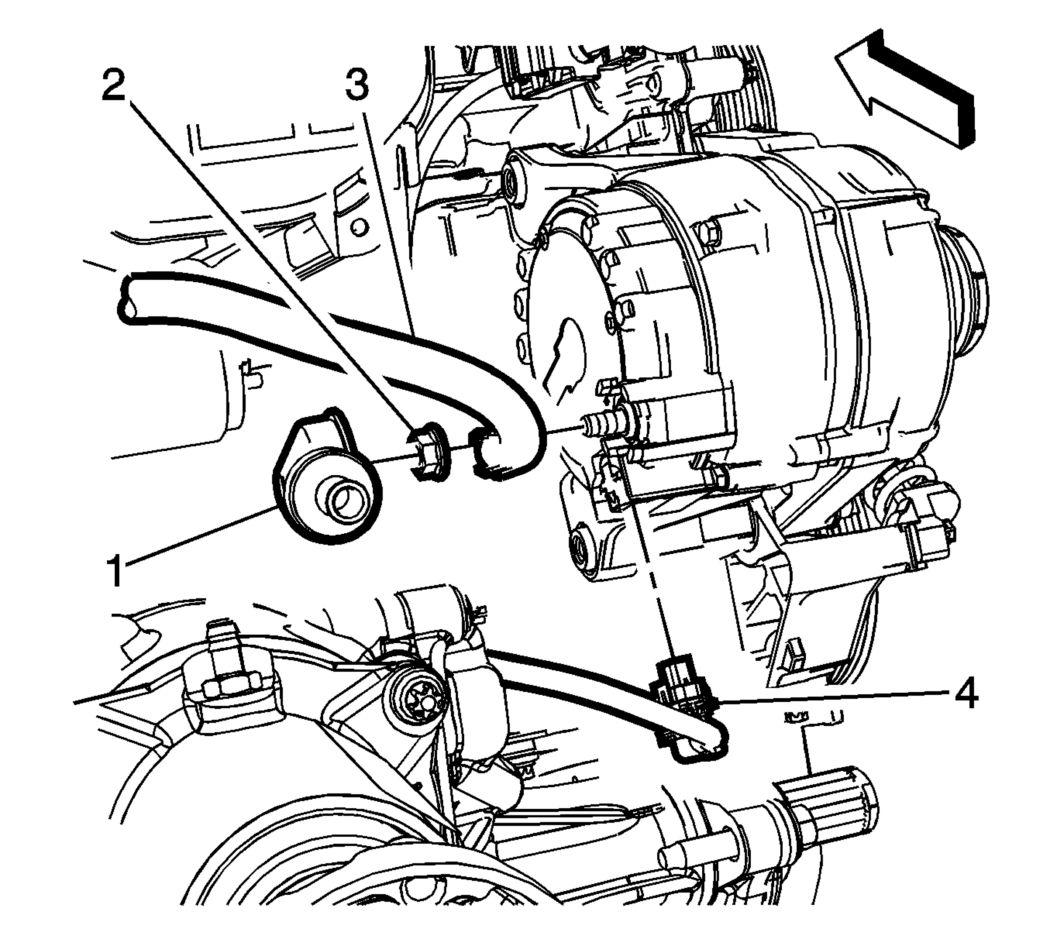

    5. Fig 1: Generator, Cables And Fasteners
    GM2777174Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect the engine wiring harness connector (4).
  6. Remove the protective boot (1).
  7. Remove the battery positive cable fastener (2) and the battery positive cable (3).

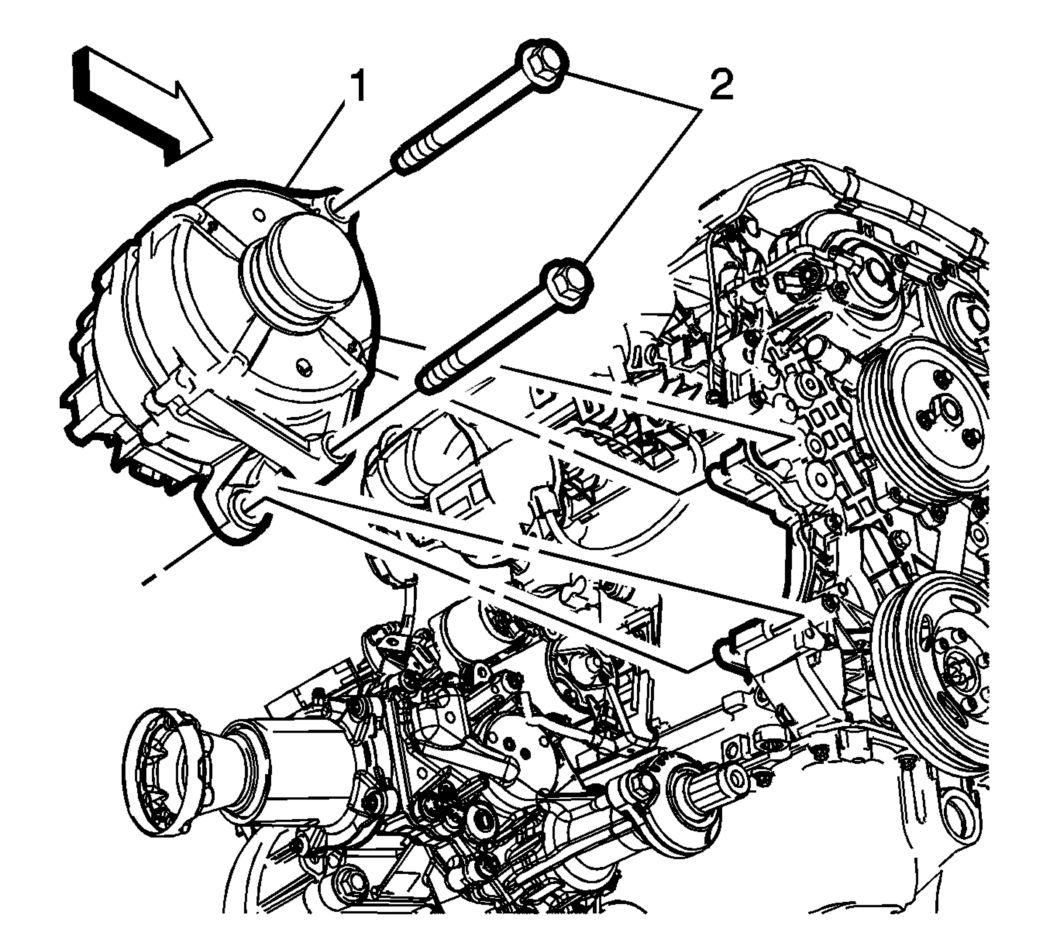

    8. Fig 2: Generator And Mounting Fasteners
    GM2777172Courtesy of GENERAL MOTORS COMPANY
  8. Remove the 2 generator mounting fasteners (2).
  9. Remove the generator (1) from above.
