Multifunction Power Supply Converter Replacement

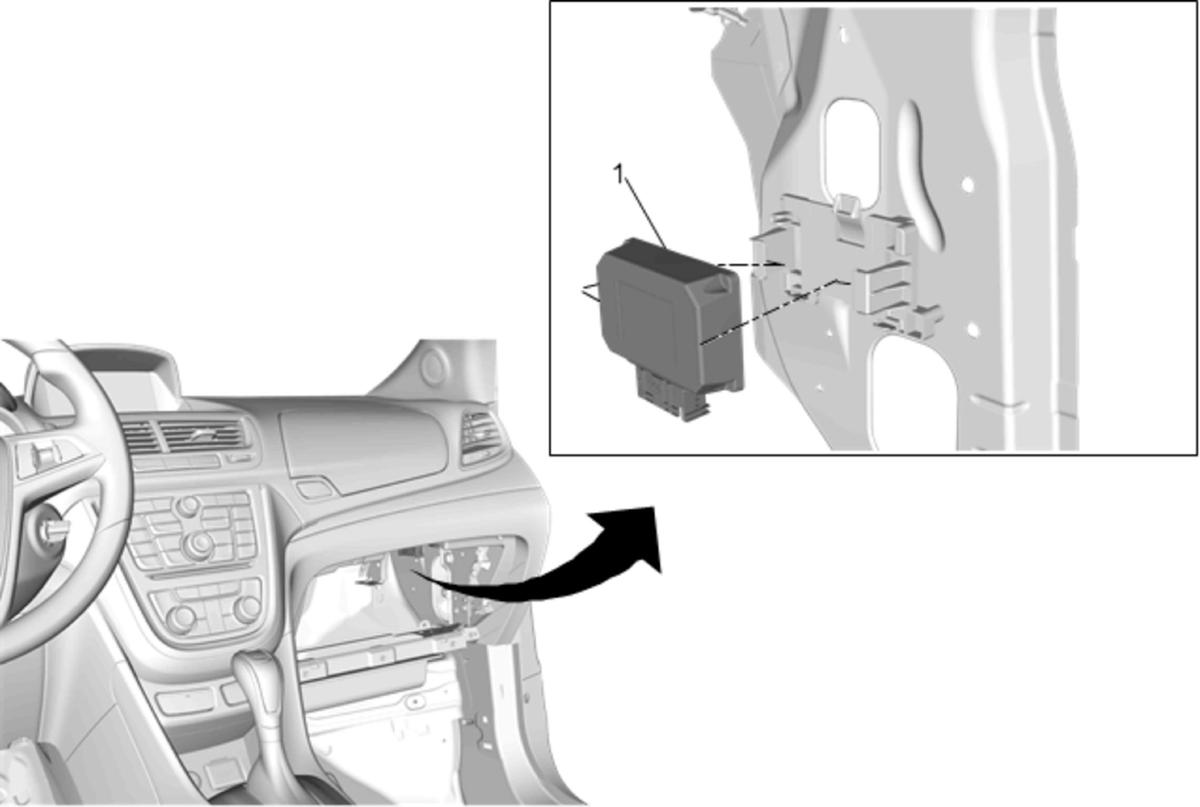

Fig 1: Multifunction Power Supply Converter

GM3940383

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9)
Remove Communication Interface Module. Refer to Communication Interface Module Replacement (Chevrolet)Communication Interface Module Replacement (Buick)

1

Multifunction Power Supply Converter

Procedure

Disconnect the electrical connector.
Disengage tabs to remove from bracket.
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9) Battery Negative Cable Disconnection and Connection (with KL9)
Refer to Control Module References for programming and set up information, if required.
