Exhaust Crossover Pipe Heat Shield Replacement

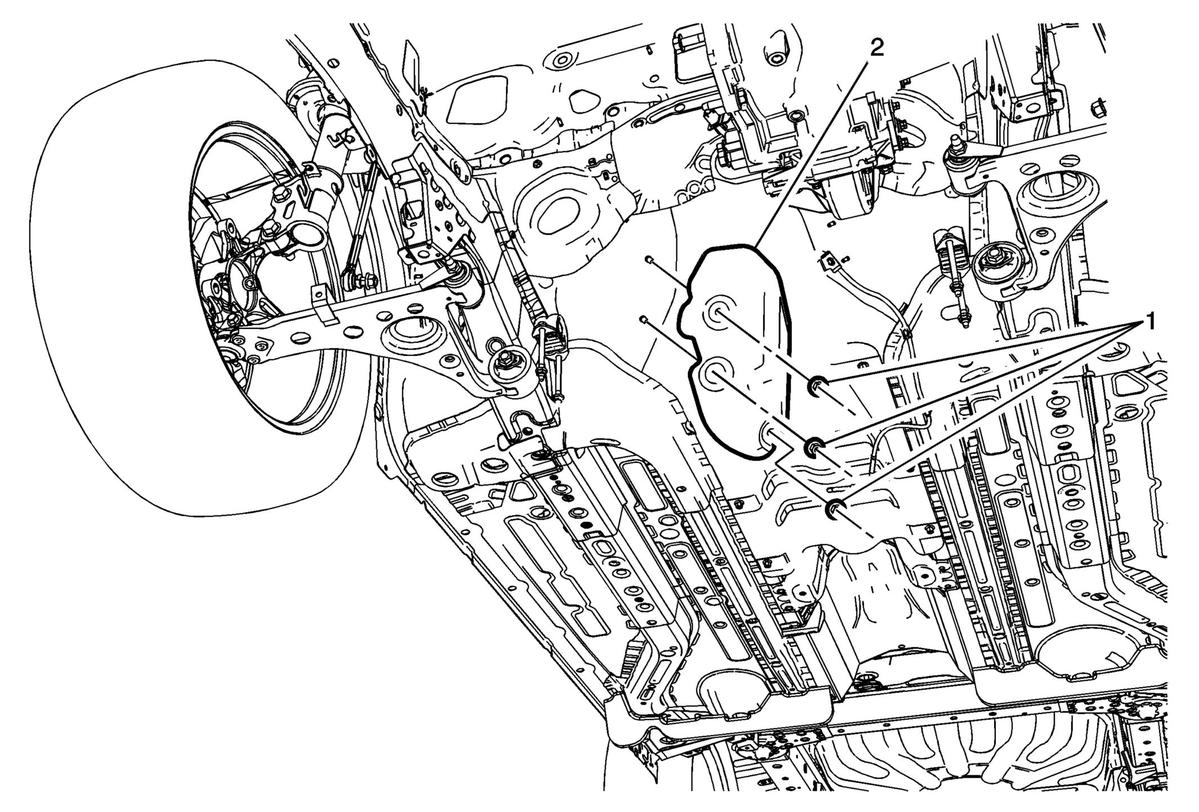

Fig 1: Exhaust Crossover Pipe Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Eye Protection Warning . Preliminary Procedures Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (2H0) Exhaust Muffler Replacement (LUV) Exhaust Muffler Replacement (LE2) .
1	Exhaust Crossover Pipe Heat Shield Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (26 lb in)
2	Exhaust Crossover Pipe Heat Shield
