Fuel Level Sensor Replacement

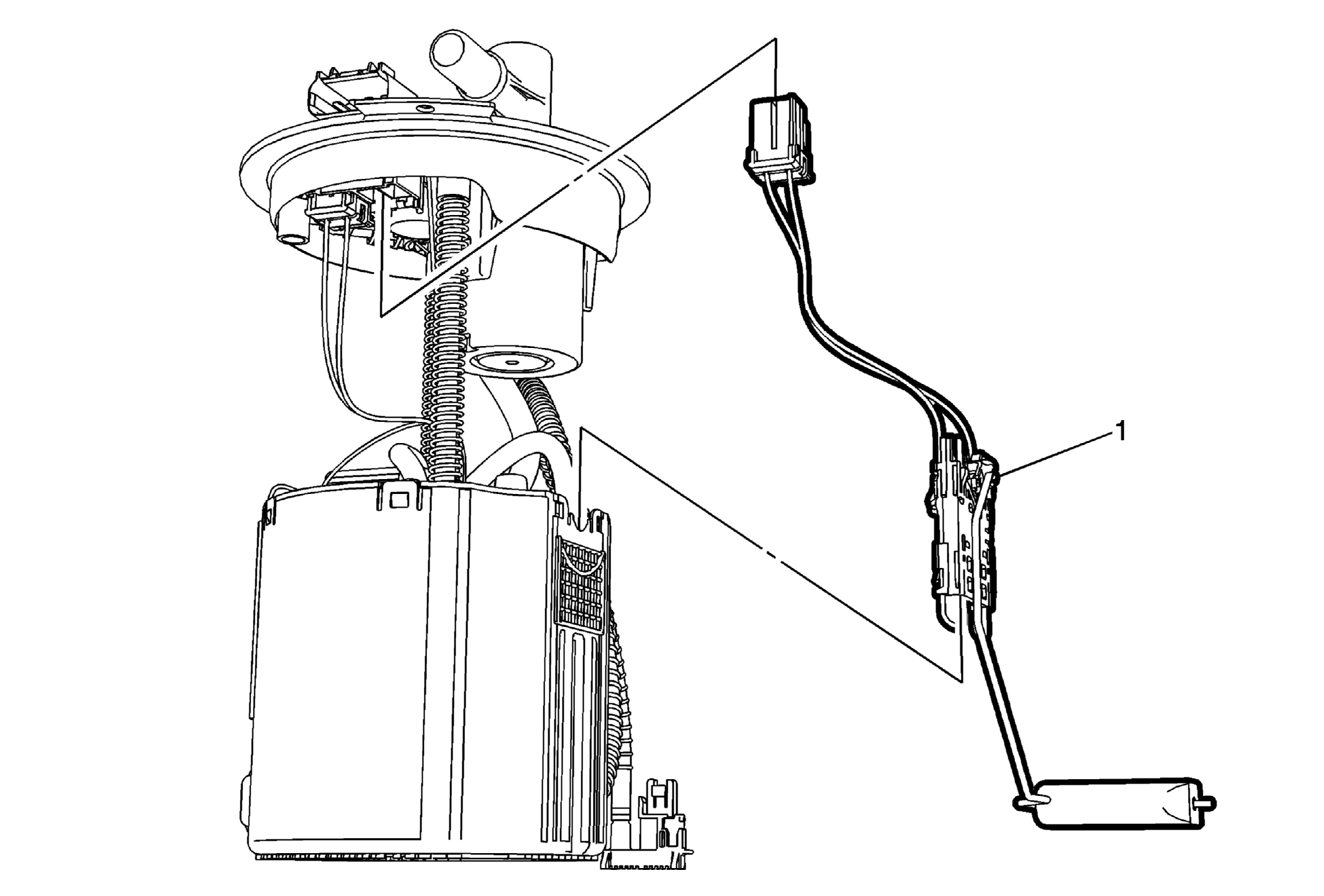

Fig 1: Fuel Level Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Fuel/gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby. Preliminary Procedures Remove the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement (FWD) . Disconnect the electrical connector.
1	Fuel Level Sensor Procedure Release tabs and slide fuel level sensor up to remove.

Callout

Component Name

WARNING:

Fuel/gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.

Preliminary Procedures

Remove the fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement (FWD) .
Disconnect the electrical connector.

Fuel Level Sensor
Procedure
Release tabs and slide fuel level sensor up to remove.
