Fuel Pump Flow Control Module Replacement

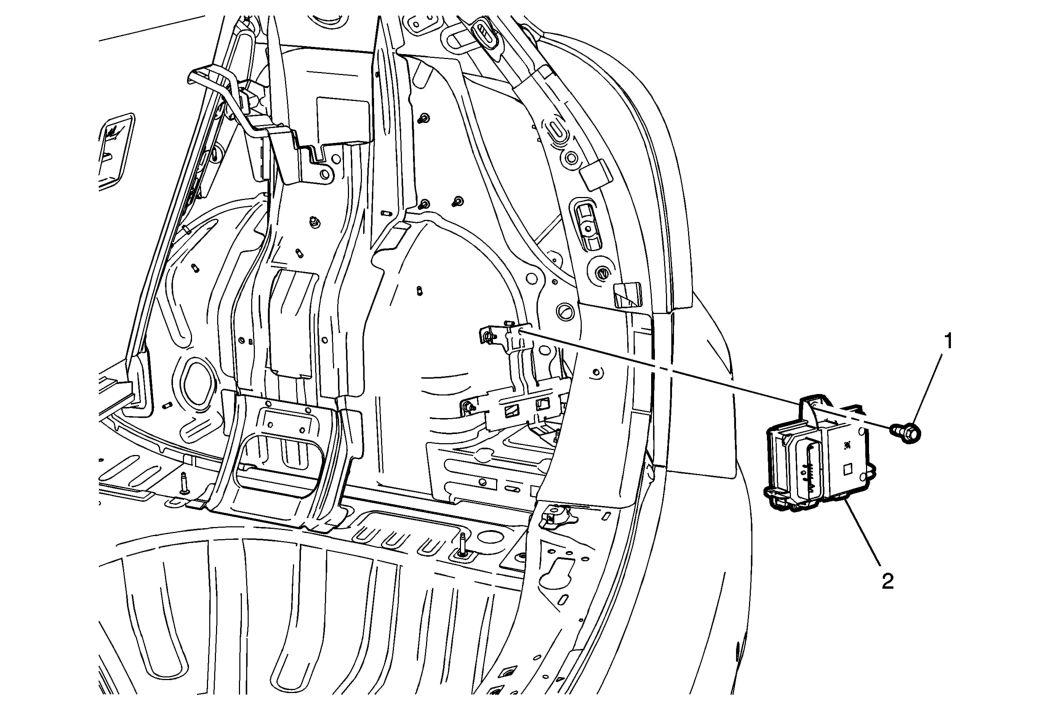

Fig 1: Fuel Pump Flow Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
1	Fuel Pump Flow Control Module Bolt CAUTION: Refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Fuel Pump Flow Control Module Procedure Disconnect the electrical connector. Program the fuel pump flow control module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedures
Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .

Fuel Pump Flow Control Module Bolt

CAUTION:

Tighten
9 N.m (80 lb in)

Fuel Pump Flow Control Module

Procedure
