Removal Procedure
- Remove the fuel cap.
- Drain the fuel tank. Fuel Tank Draining
- Remove the right rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Remove the right rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement .

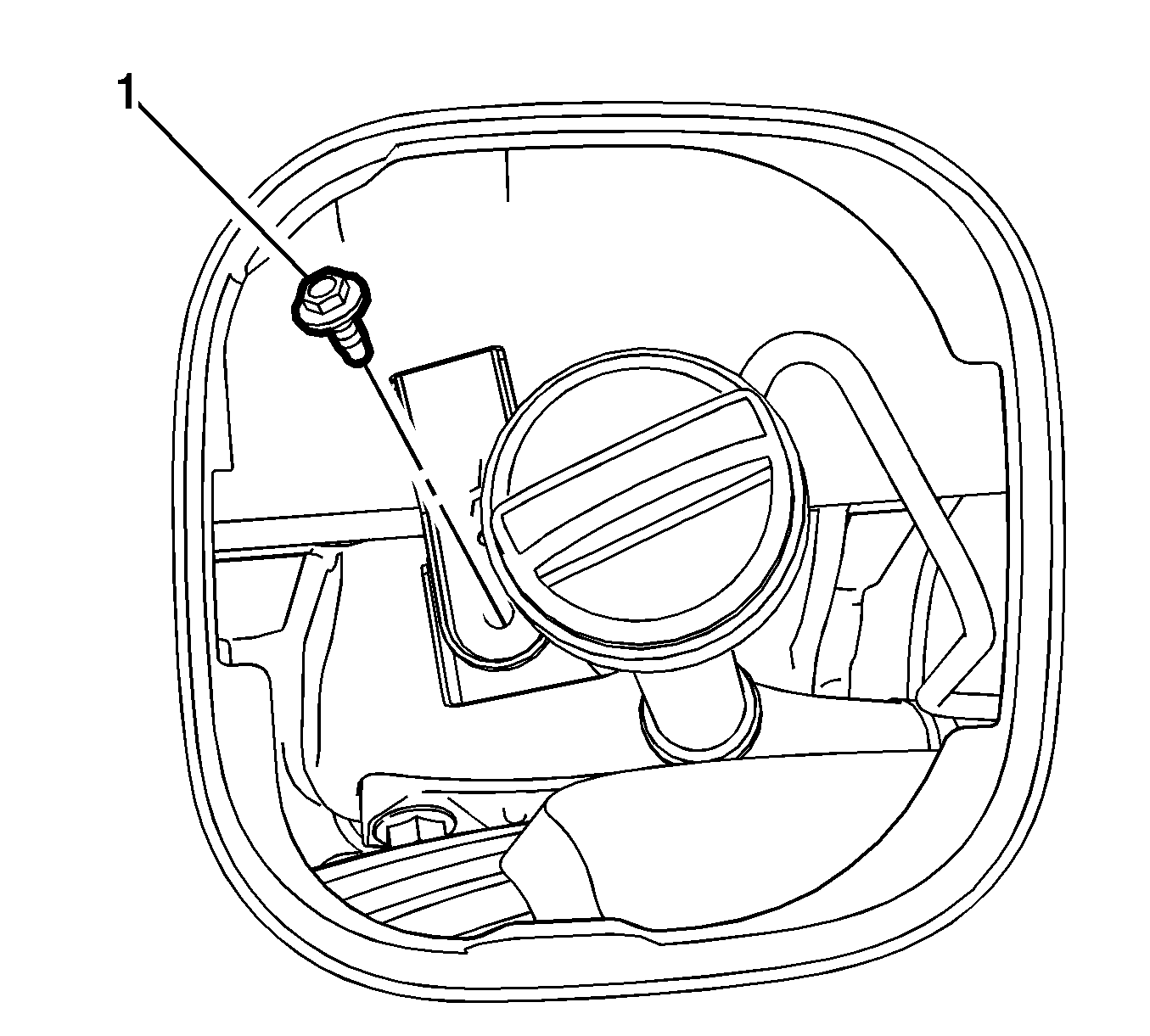

- Remove the fuel tank filler pipe fastener (1).
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

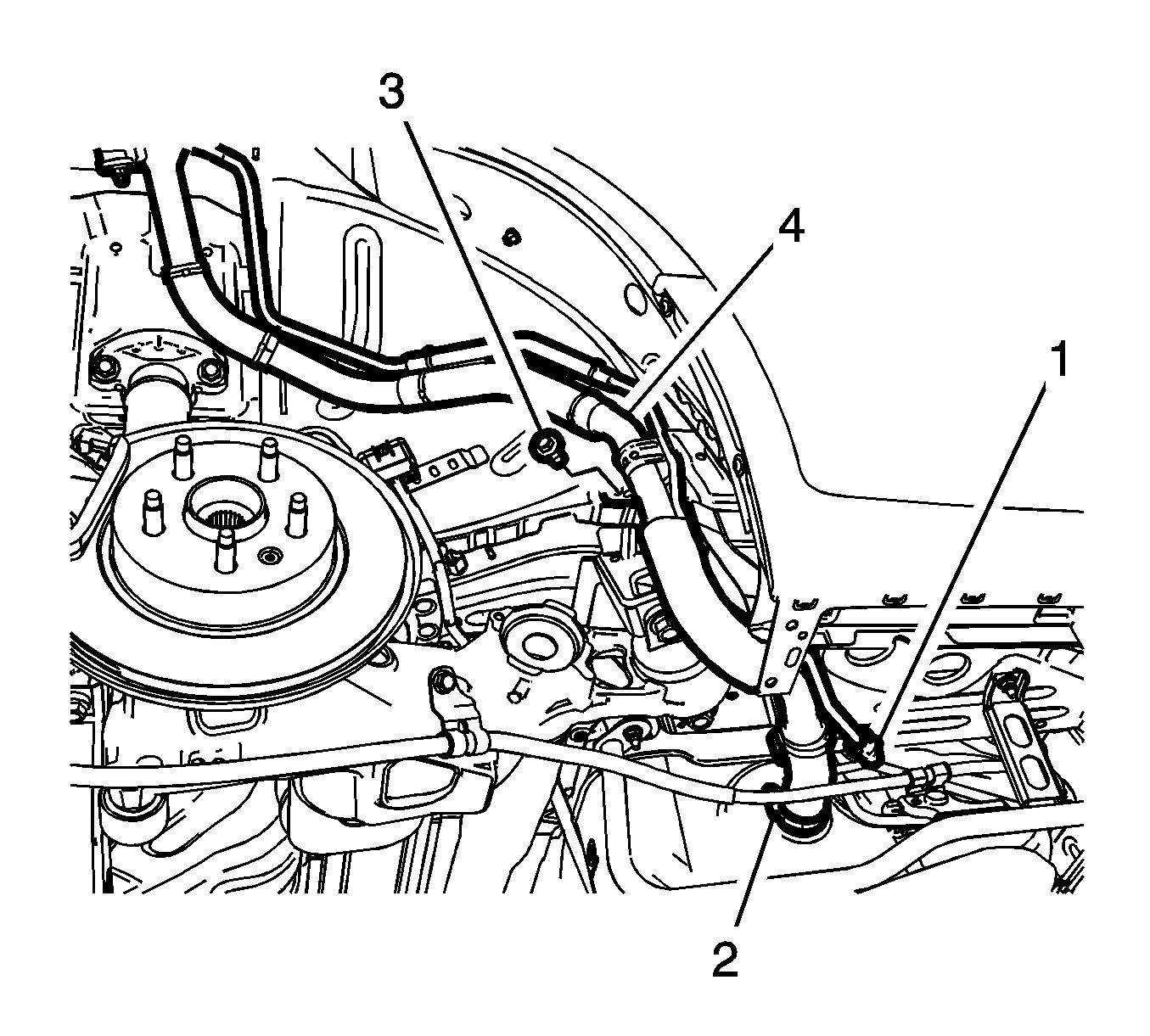

- Remove the fuel tank filler pipe clamp (2).
- Disconnect the fuel tank filler pipe quick connect fitting (1). Refer to Plastic Collar Quick Connect Fitting Service .
- Remove the fuel tank filler pipe fastener (3).
- Remove the fuel tank filler pipe (4) from the vehicle.
WARNING:
Fuel/gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.
