Seat Belt System Description and Operation: Notes

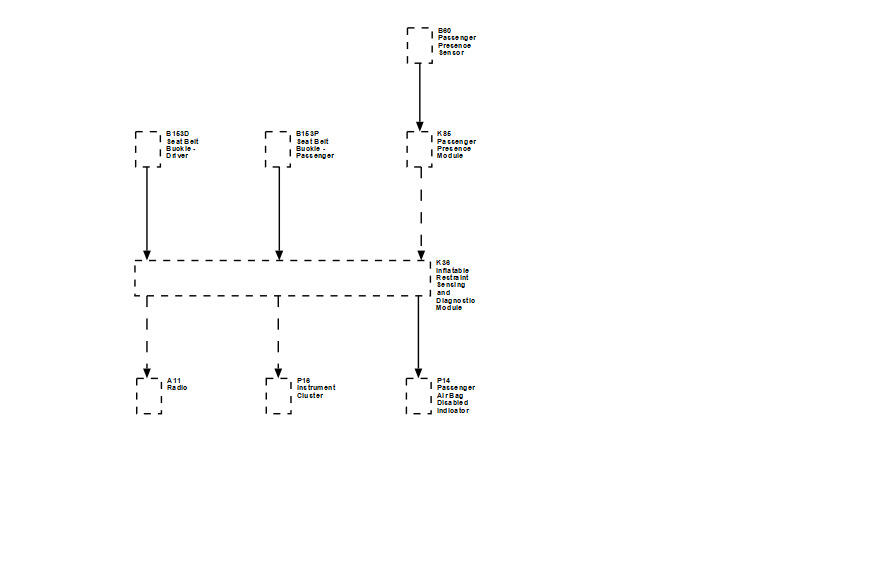

Fig 1: Seat Belt with P14 Block Diagram

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
B153D	B153D Seat Belt Buckle - Driver
B153P	B153P Seat Belt Buckle - Passenger
K36	K36 Inflatable Restraint Sensing and Diagnostic Module
A11	A11 Radio
P16	P16 Instrument Cluster
B60	B60 Passenger Presence Sensor
K85	Passenger Presence Module
P14	P14 Passenger Air Bag Disabled Indicator
