Rear Center Seat Belt Retractor Replacement

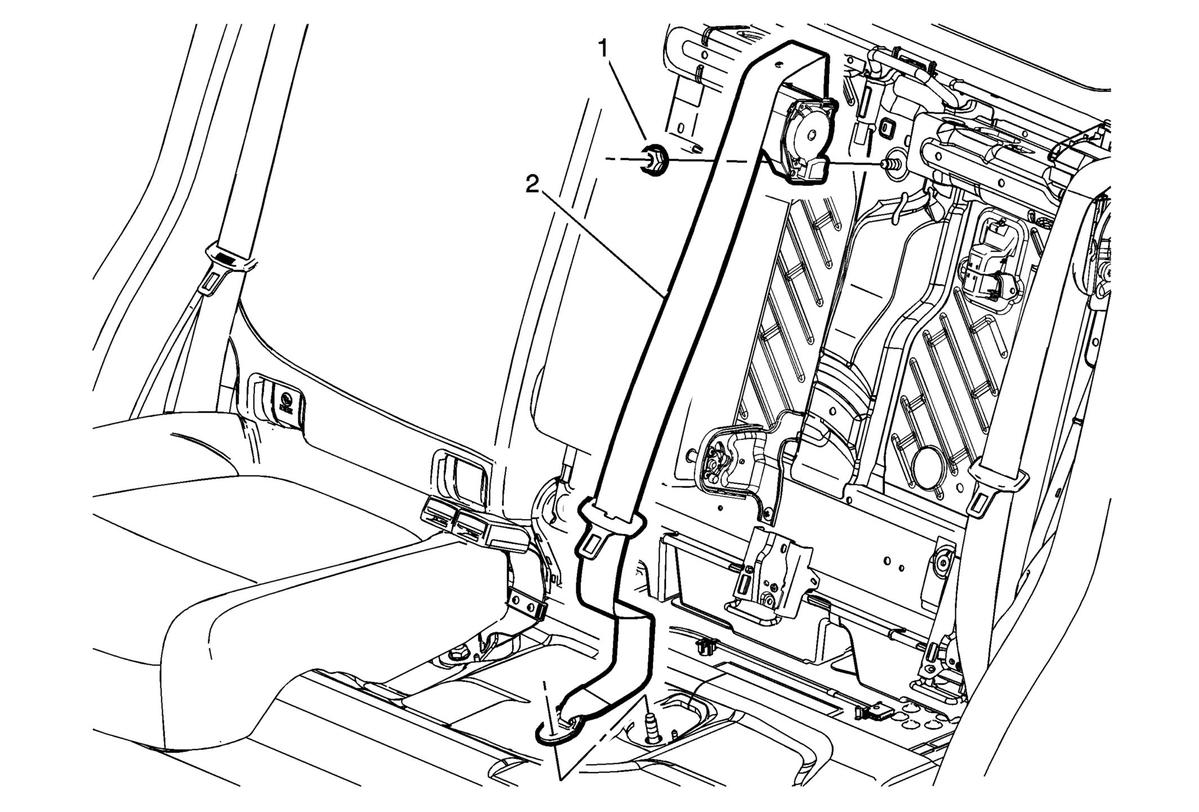

Fig 1: Rear Seat Center Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat belt buckle (left side). Refer to Rear Seat Belt Buckle Replacement (Left) . Remove the rear seat back cushion cover and pad assembly. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60%)Rear Seat Back Cushion Cover and Pad Replacement (40%) .
1	Rear Center Seat Belt Retractor Nut. CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Center Seat Belt Retractor

Callout

Component Name

Preliminary Procedure

Rear Center Seat Belt Retractor Nut.

CAUTION:

Tighten
45 N.m (33 lb ft)

Rear Center Seat Belt Retractor
