Installation Procedure

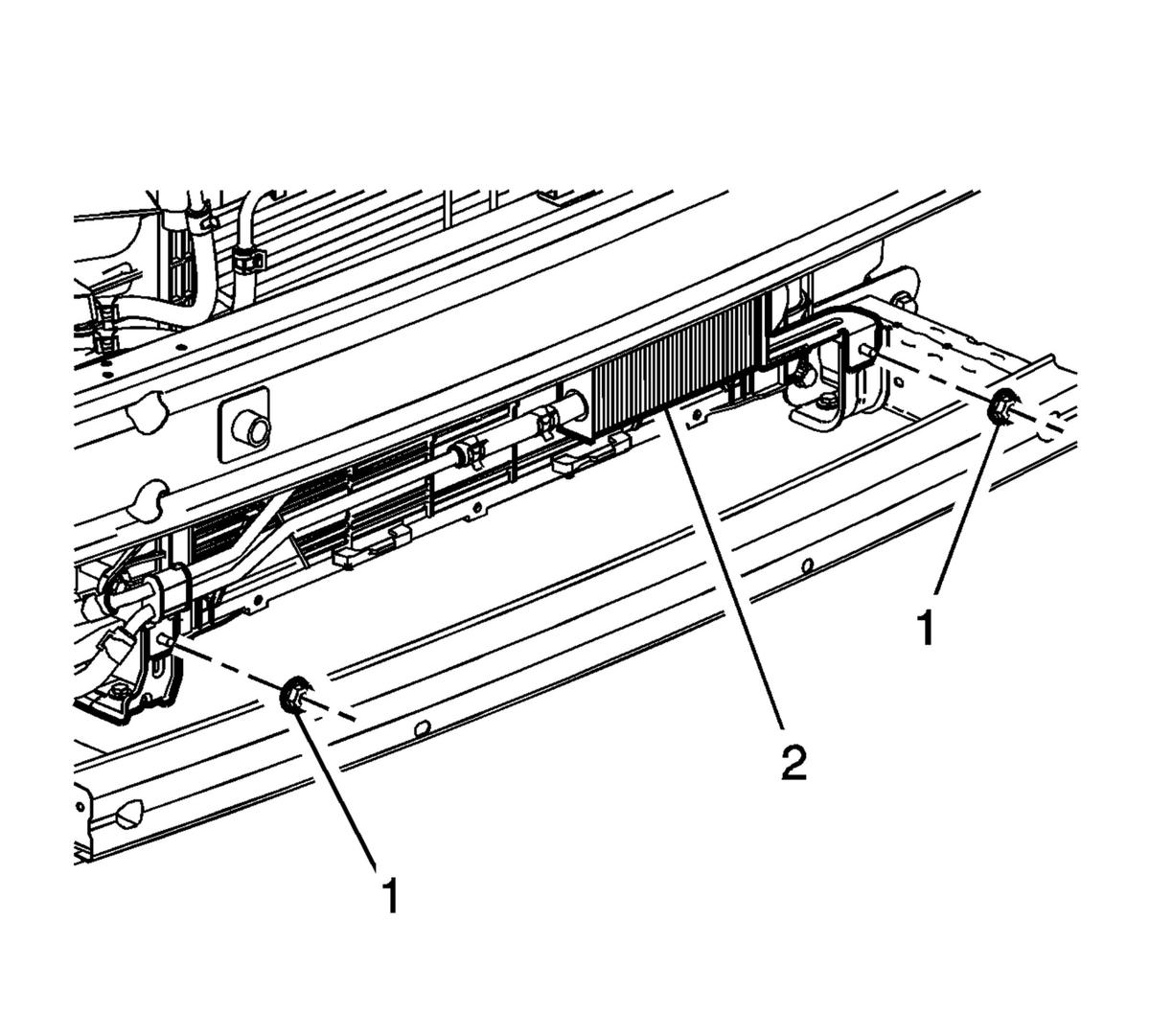

    Fig 1: Power Steering Fluid Cooler And Bracket Nuts
    GM2812359Courtesy of GENERAL MOTORS COMPANY
  1. Position the power steering fluid cooler (2) on the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install and tighten Power Steering Fluid Cooler Bracket Nuts (1) (Qty: 2) to 9 N.m (80 lb in)

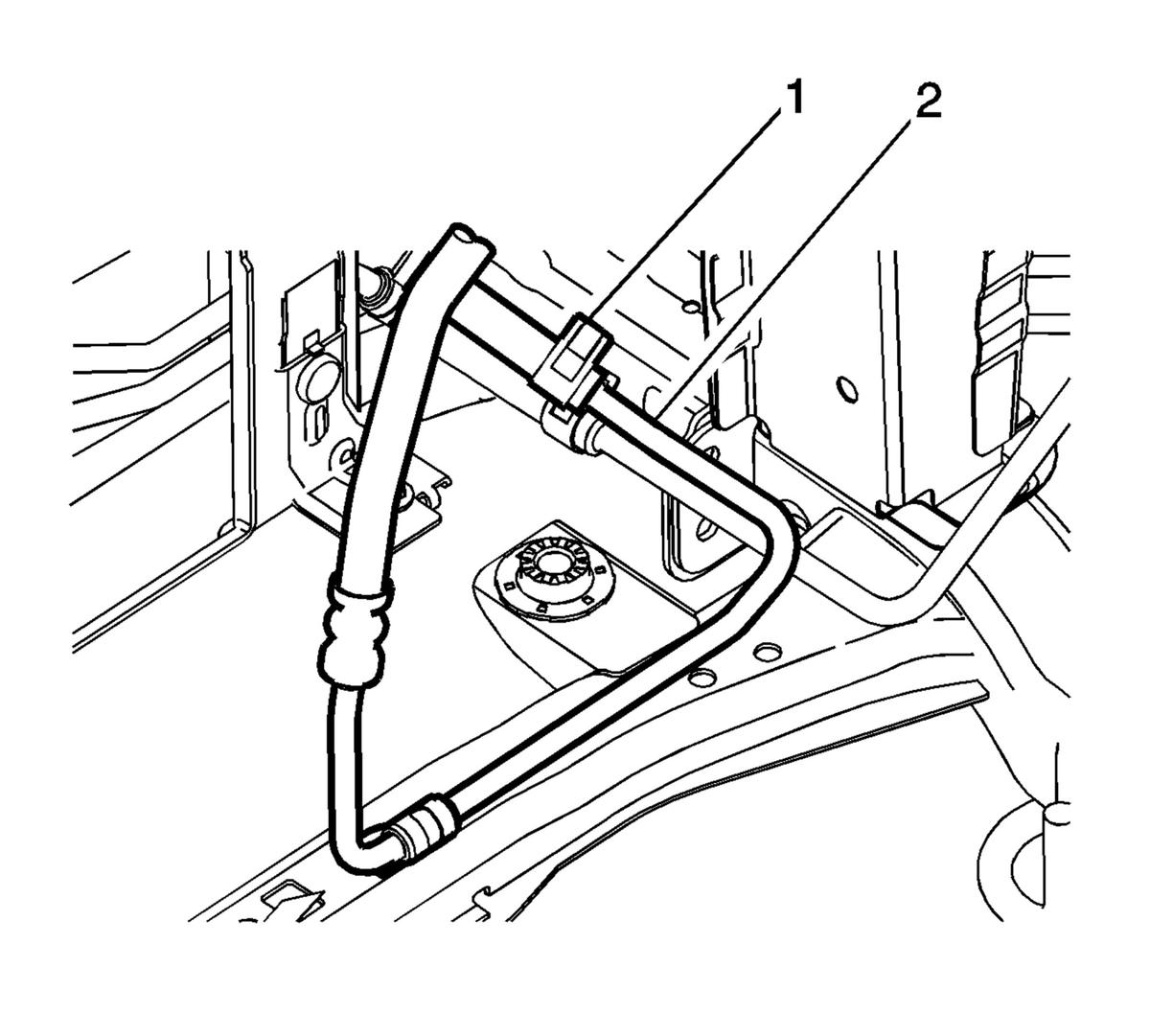

    3. Fig 2: Power Steering Fluid Reservoir Inlet Pipe And Clamp
    GM2810052Courtesy of GENERAL MOTORS COMPANY
  3. Install Power Steering Fluid Reservoir Inlet Pipe (2) @ Power Steering Fluid Cooler
  4. Engage Power Steering Fluid Reservoir Inlet Pipe Clamp (1)

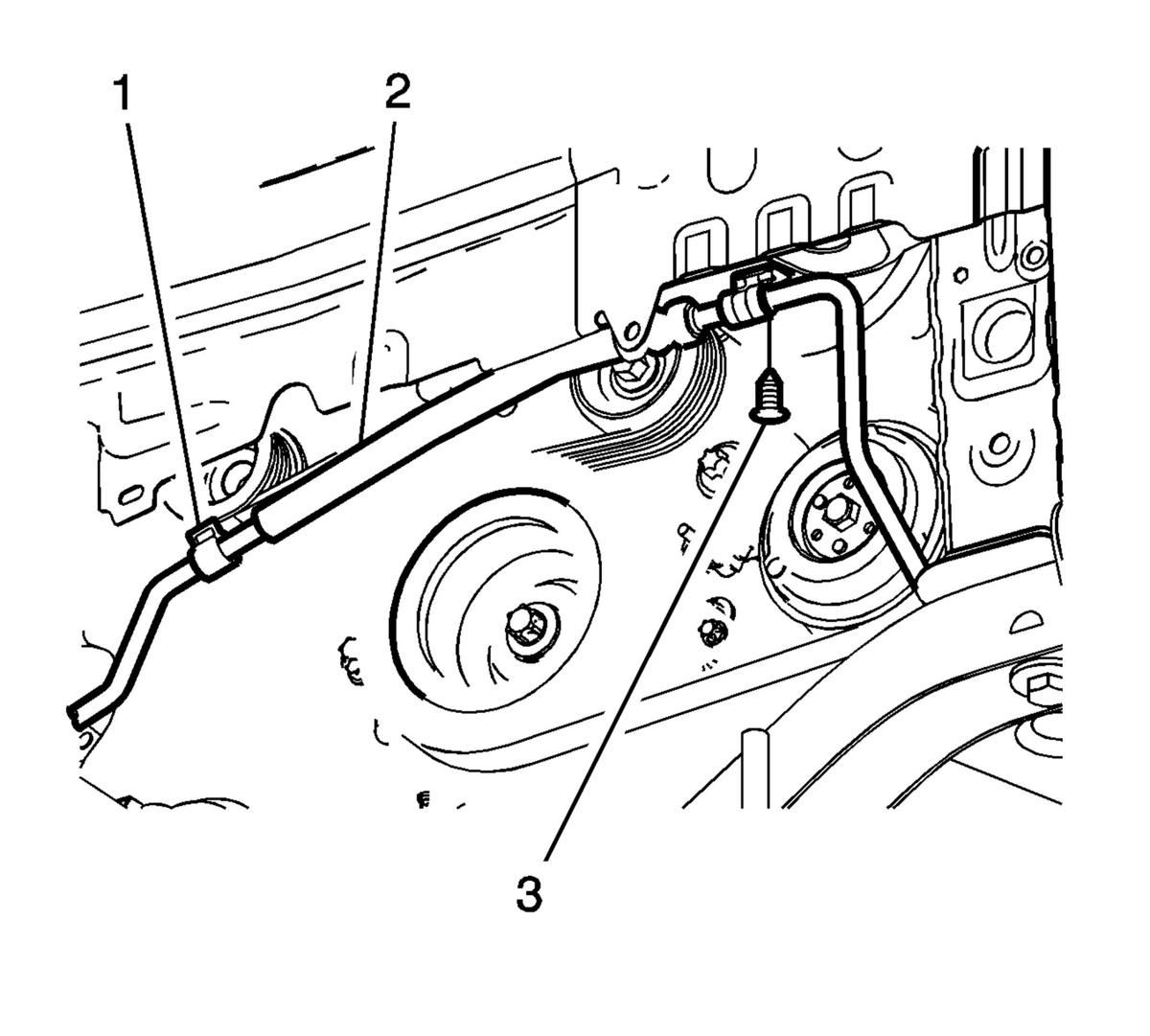

    5. Fig 3: Power Steering Gear Outlet Hose, Clamp And Push Pin
    GM2812352Courtesy of GENERAL MOTORS COMPANY
  5. Install Power Steering Gear Outlet Hose (2) @ Power Steering Fluid Cooler
  6. Engage Power Steering Gear Outlet Hose Clamp (1)
  7. Install the plastic push pin (3) in the power steering fluid cooler bracket.
  8. Install Front Bumper Fascia. Refer to Front Bumper Fascia Replacement (Chevrolet)Front Bumper Fascia Replacement (Buick)
  9. Fill and bleed the power steering system. Refer to Power Steering System Bleeding
