Installation Procedure

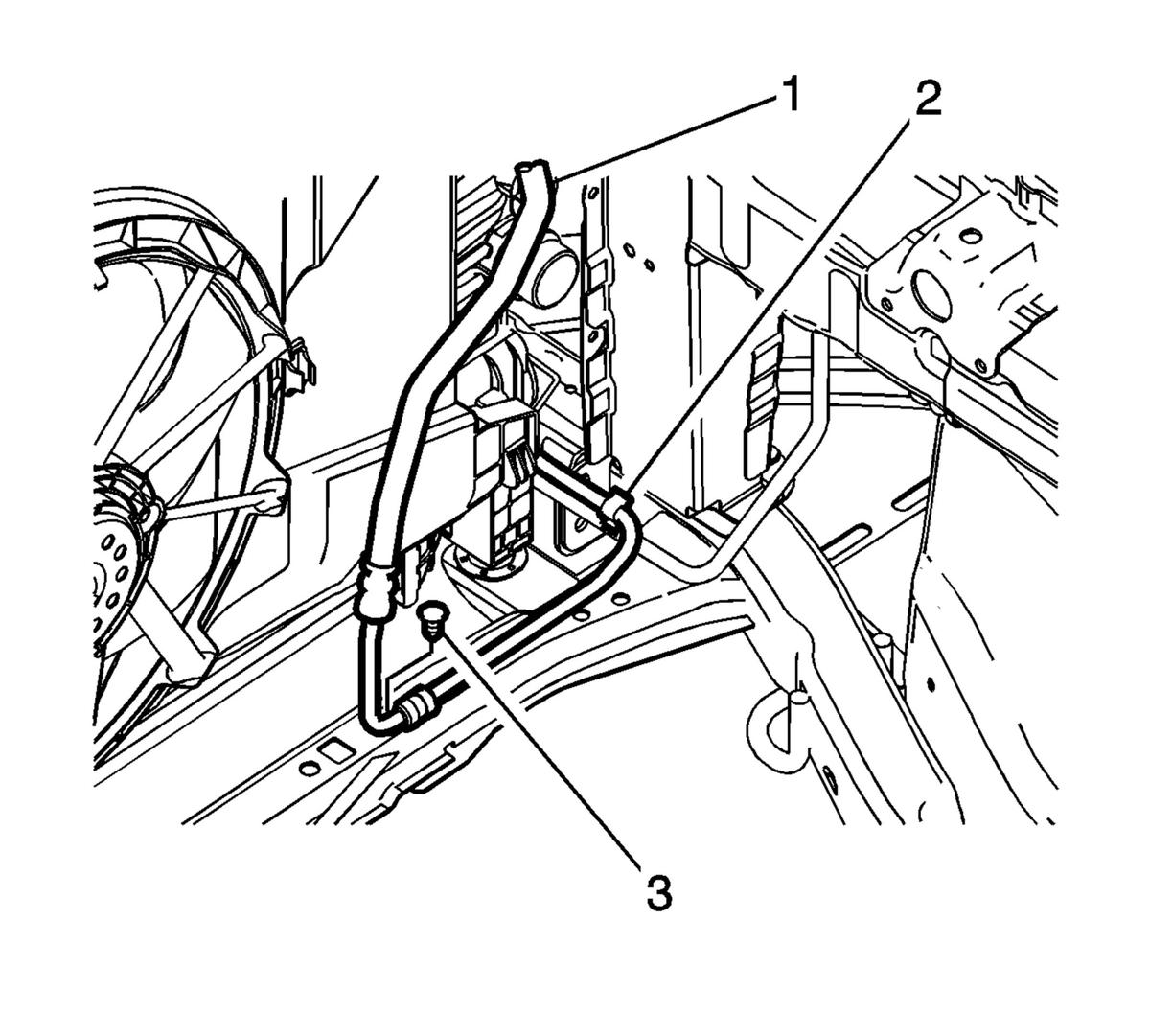

Fig 1: Power Steering Fluid Reservoir Inlet Pipe And Clamp

Courtesy of GENERAL MOTORS COMPANY

Position the power steering fluid reservoir inlet pipe (2) on the vehicle.
Install Power Steering Fluid Reservoir Inlet Pipe (2) @ Power Steering Fluid Cooler
Engage Power Steering Fluid Reservoir Inlet Pipe Clamp (1)

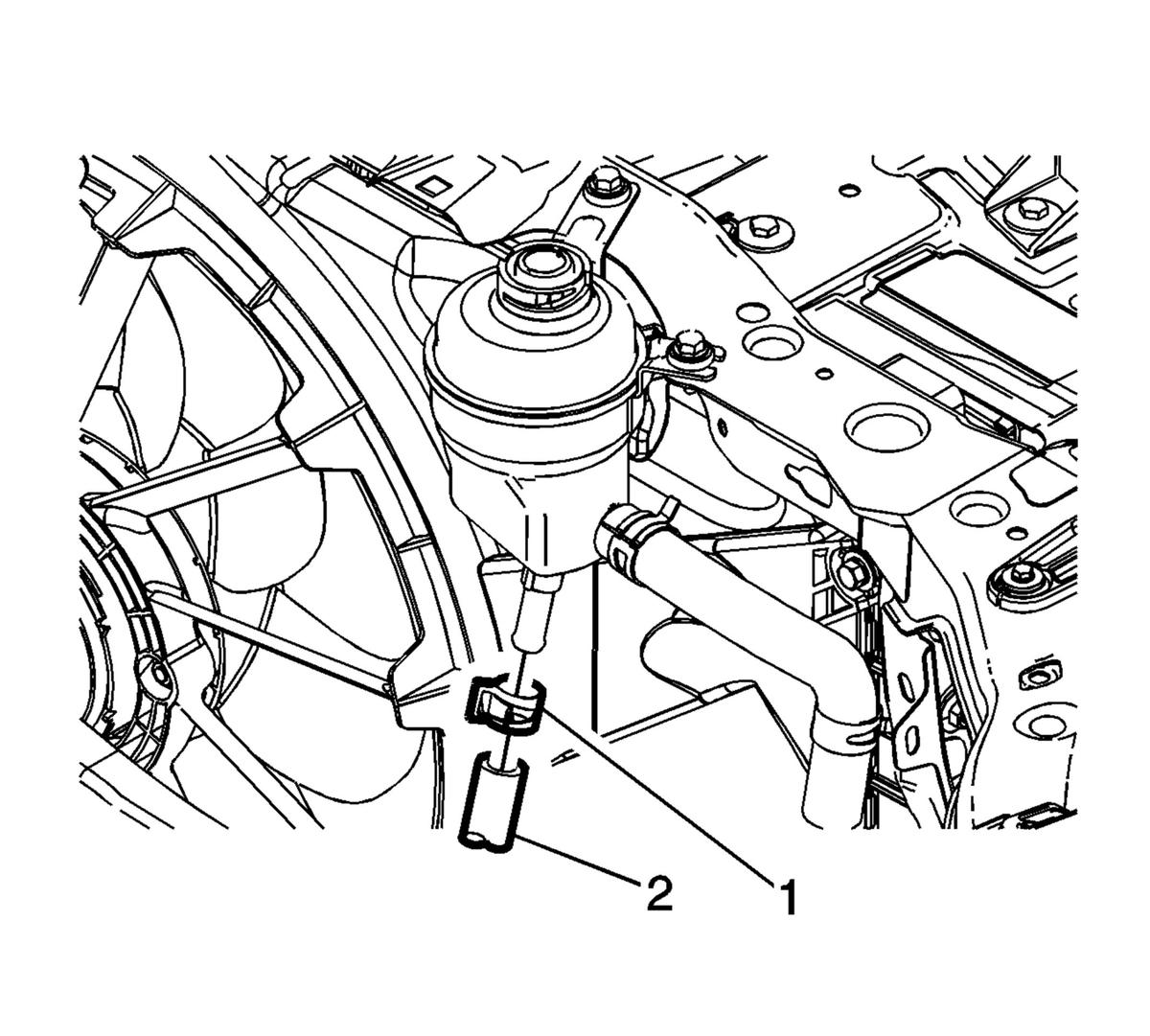

Fig 2: Power Steering Fluid Reservoir Inlet Hose, Plastic Clip And Push Pin Retainer

Courtesy of GENERAL MOTORS COMPANY

Install the plastic push pin retainer (3) and secure the power steering fluid reservoir inlet pipe clamp (1) in the plastic clip (2).

Fig 3: Power Steering Fluid Reservoir Inlet Pipe And Clamp

Courtesy of GENERAL MOTORS COMPANY

Install Power Steering Fluid Reservoir Inlet Pipe (2) @ Power Steering Fluid Reservoir
Engage Power Steering Fluid Reservoir Inlet Pipe Clamp (1)
Fill and bleed the power steering system. Refer to Power Steering System Bleeding
