Power Steering Pump Bracket Replacement

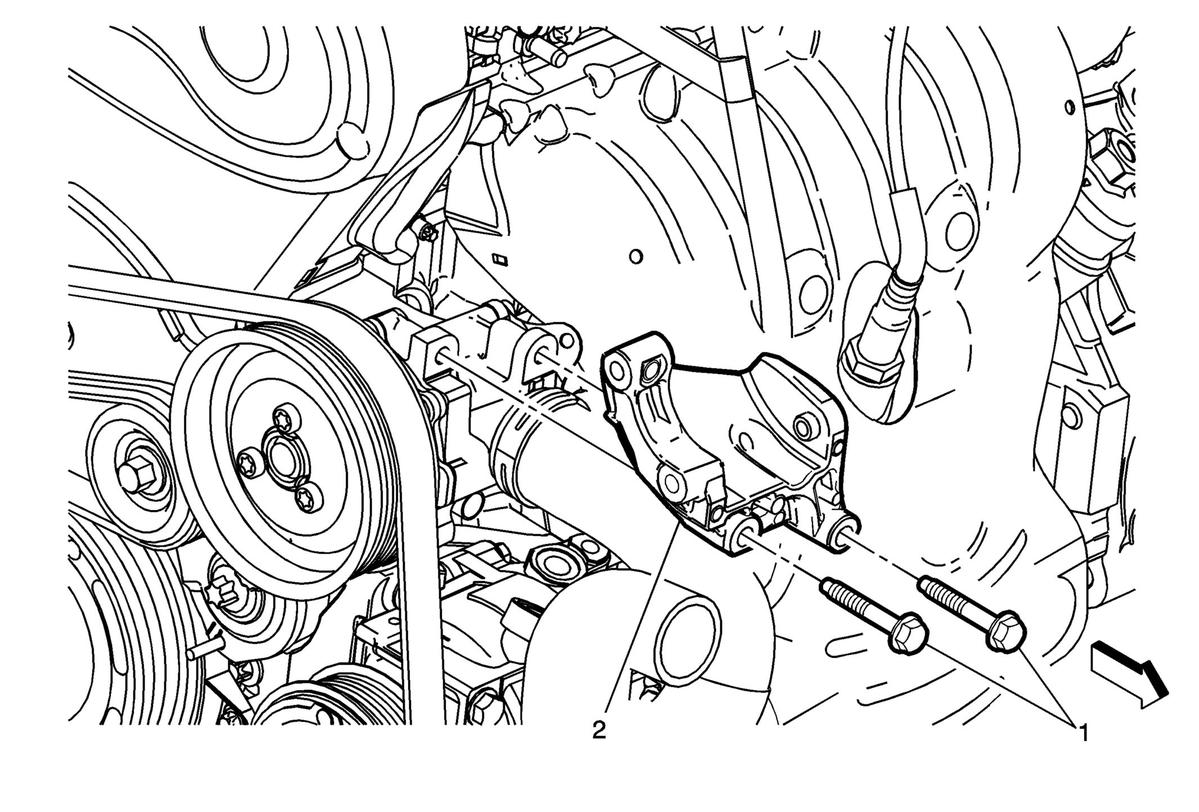

Fig 1: Power Steering Pump Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Power Steering Pump. Refer to Power Steering Pump Replacement
1	Power Steering Pump Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Power Steering Pump Bracket
