Power Steering Pump Pulley Replacement

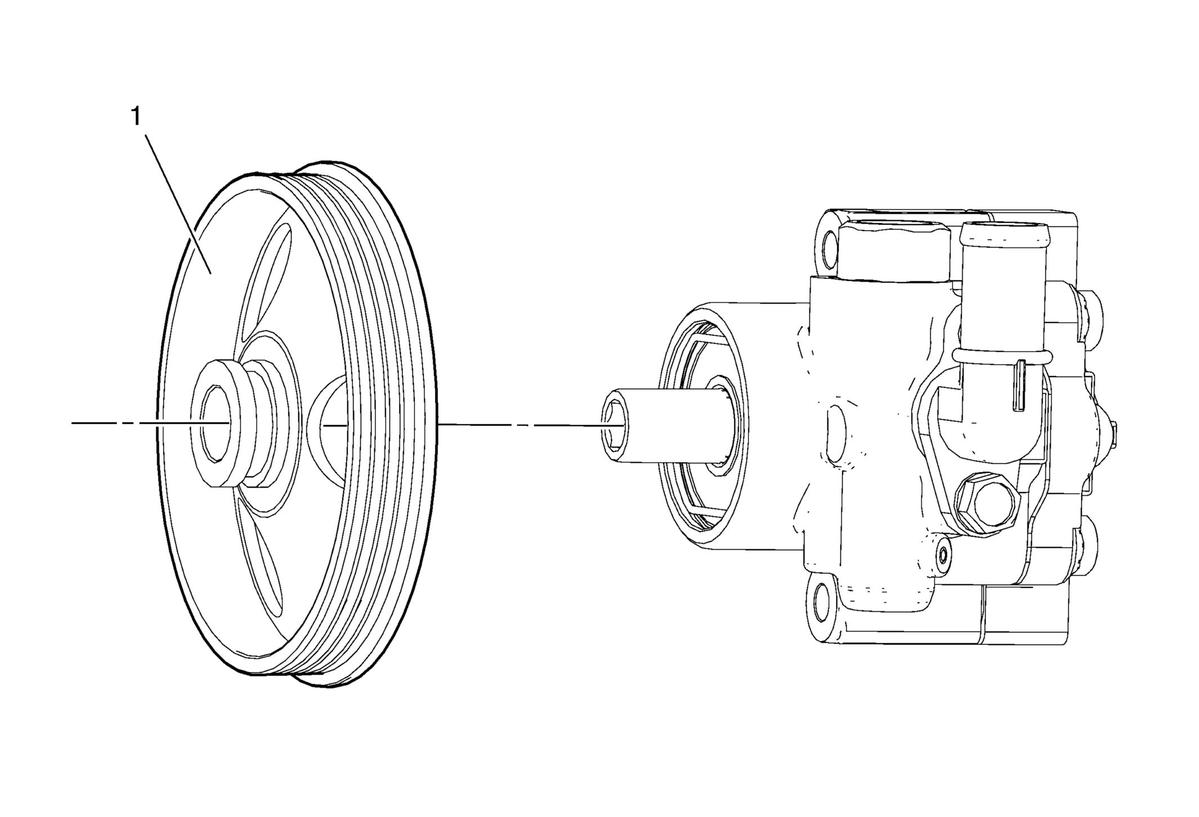

Fig 1: Power Steering Pump Pulley
GM2028041Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Power Steering Pump. Refer to Power Steering Pump Replacement
1 Power Steering Pump Pulley

Procedure

  1. Use the CH-25034-C  pulley remover to remove the power steering pump pulley.
  2. Use the CH-25033-C  pulley installer to install the power steering pump pulley.

Special Tools

  • CH-25033-C  Pulley Installer
  • CH-25034-C  Pulley Remover

Equivalent regional tools: Special Tools
