Installation Procedure

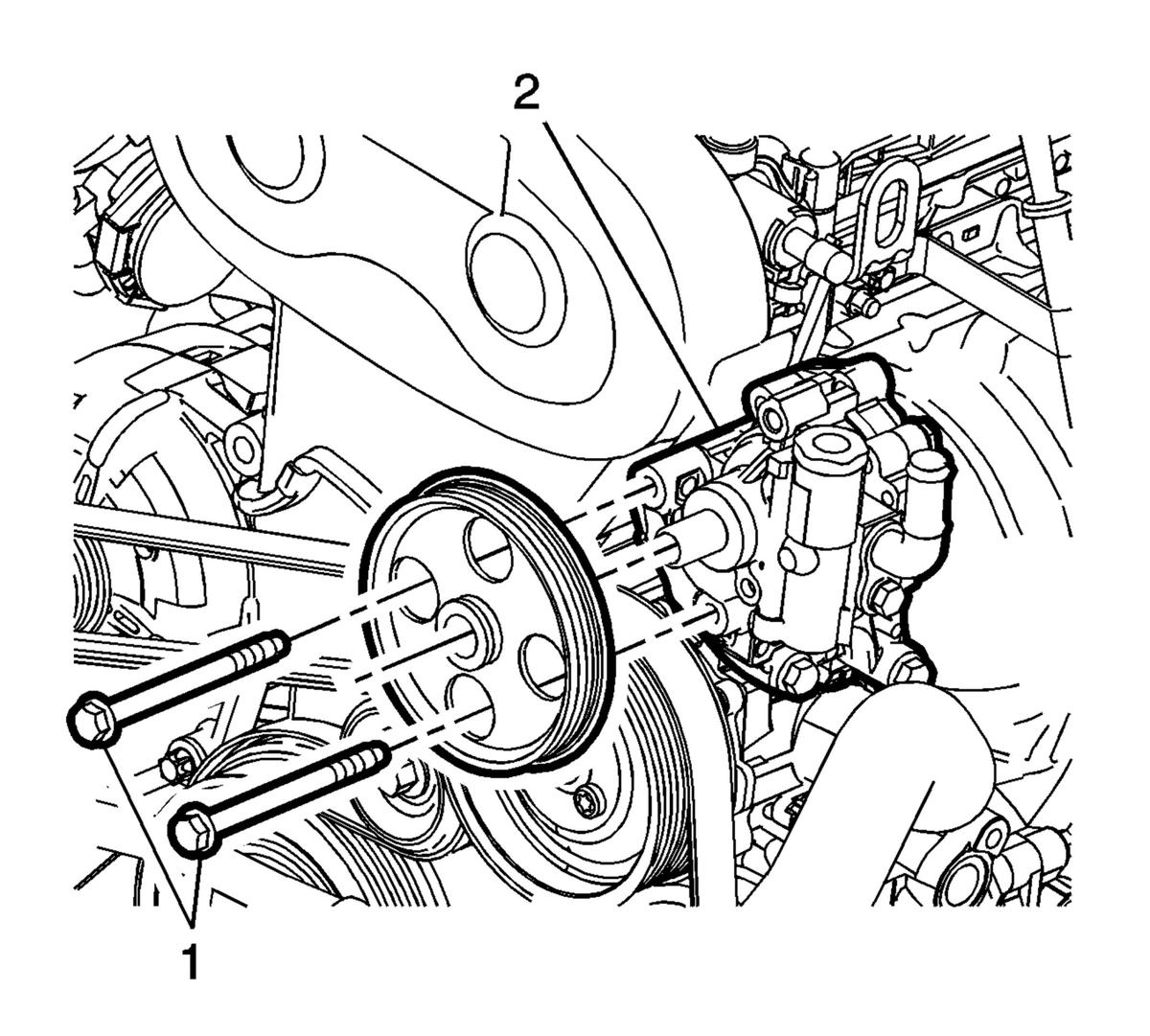

    Fig 1: Power Steering Pump And Bolts
    GM2807986Courtesy of GENERAL MOTORS COMPANY
  1. Position the power steering pump (2) on the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install and tighten Power Steering Pump Bolts (1) (Qty: 2) to 22 N.m (16 lb ft)
  3. Install Air Conditioning Evaporator Hose Assembly. Refer to Air Conditioning Evaporator Hose Assembly Replacement (LUV)Air Conditioning Evaporator Hose Assembly Replacement (LE2)

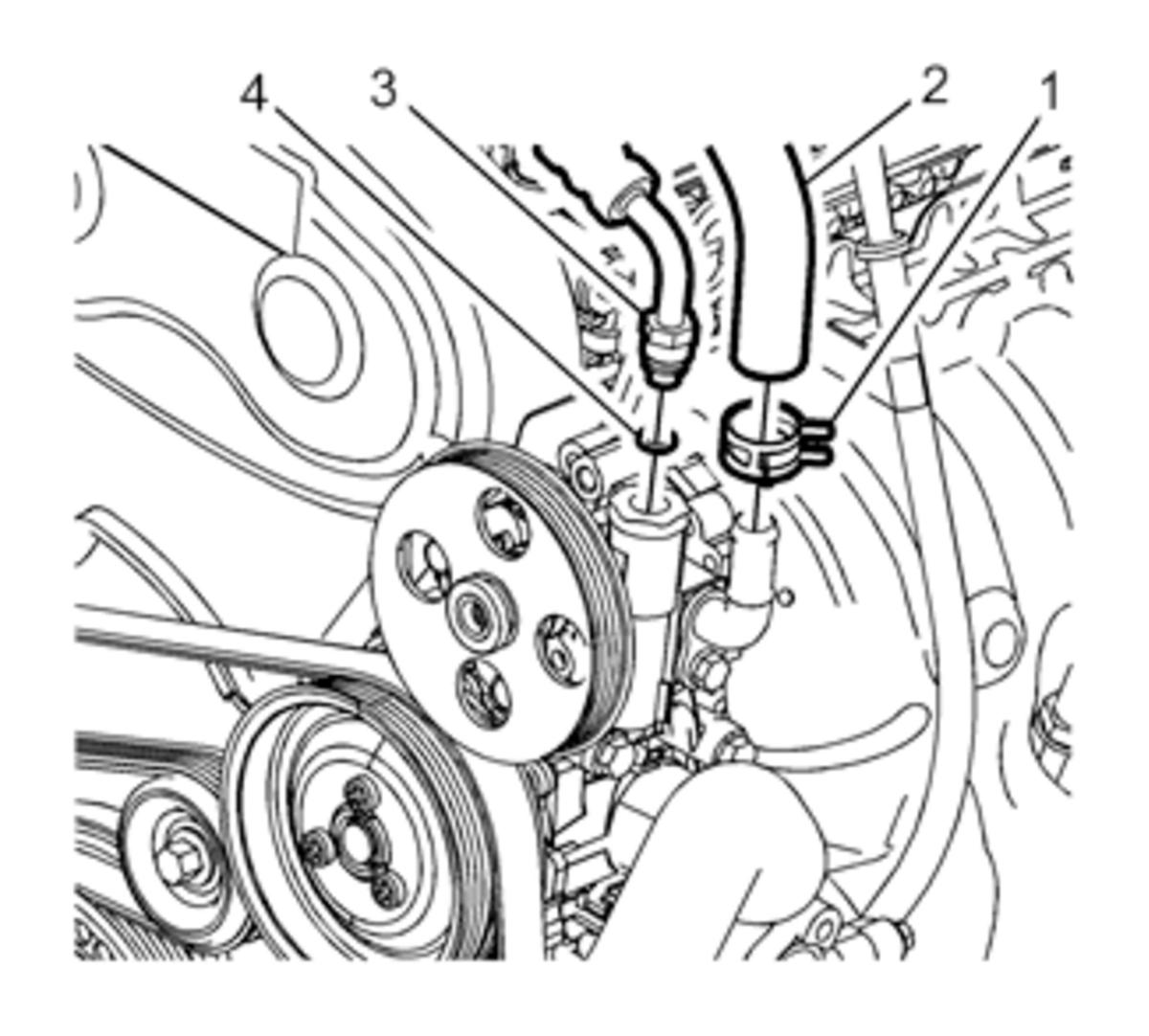

    4. Fig 2: Power Steering Fluid Reservoir Outlet Hose, Clamp, Power Steering Gear Inlet Hose And Seal
    GM2807341Courtesy of GENERAL MOTORS COMPANY
  4. Install Power Steering Gear Inlet Hose Seal (4)

    Install a NEW seal.

    5. CAUTION:

    Refer to Component Fastener Tightening Caution .

  5. Install and tighten Power Steering Gear Inlet Hose (3) @ Power Steering Pump to 34 N.m (25 lb ft)
  6. Install Power Steering Fluid Reservoir Outlet Hose (2) @ Power Steering Pump
  7. Engage Power Steering Fluid Reservoir Outlet Hose Clamp (1)
  8. Install Air Cleaner Assembly. Refer to Air Cleaner Assembly Replacement
  9. Fill and bleed the power steering system. Refer to Power Steering System Bleeding
