Special Tools
| Illustration | Tool Number/Description |
|---|---|
| CH-50342 Threaded Rod |
|
| DT-113-2-A J-03289-20 KM-113-2-A Holding Fixture |
|
| DT-8092 DW340-010 GE-8092 J-8092 KM-J-8092 Driver Handle |
|
| DT-08614-A J-08614-A Pinion Flange Holder and Remover |
|
| DT-26941 J-26941 Bushing and Bearing Remover - 3-4 in. |
|
| DT-29369-1 J-29369-1 Bushing and Bearing Remover |
|
| DT-36842 J-36842 Transaxle Holding Fixture |
|
| DT-36850 J-36850 Transjel Lubricant |
|
| DT-41819 J-41819 Input Shaft Seal Installer |
|

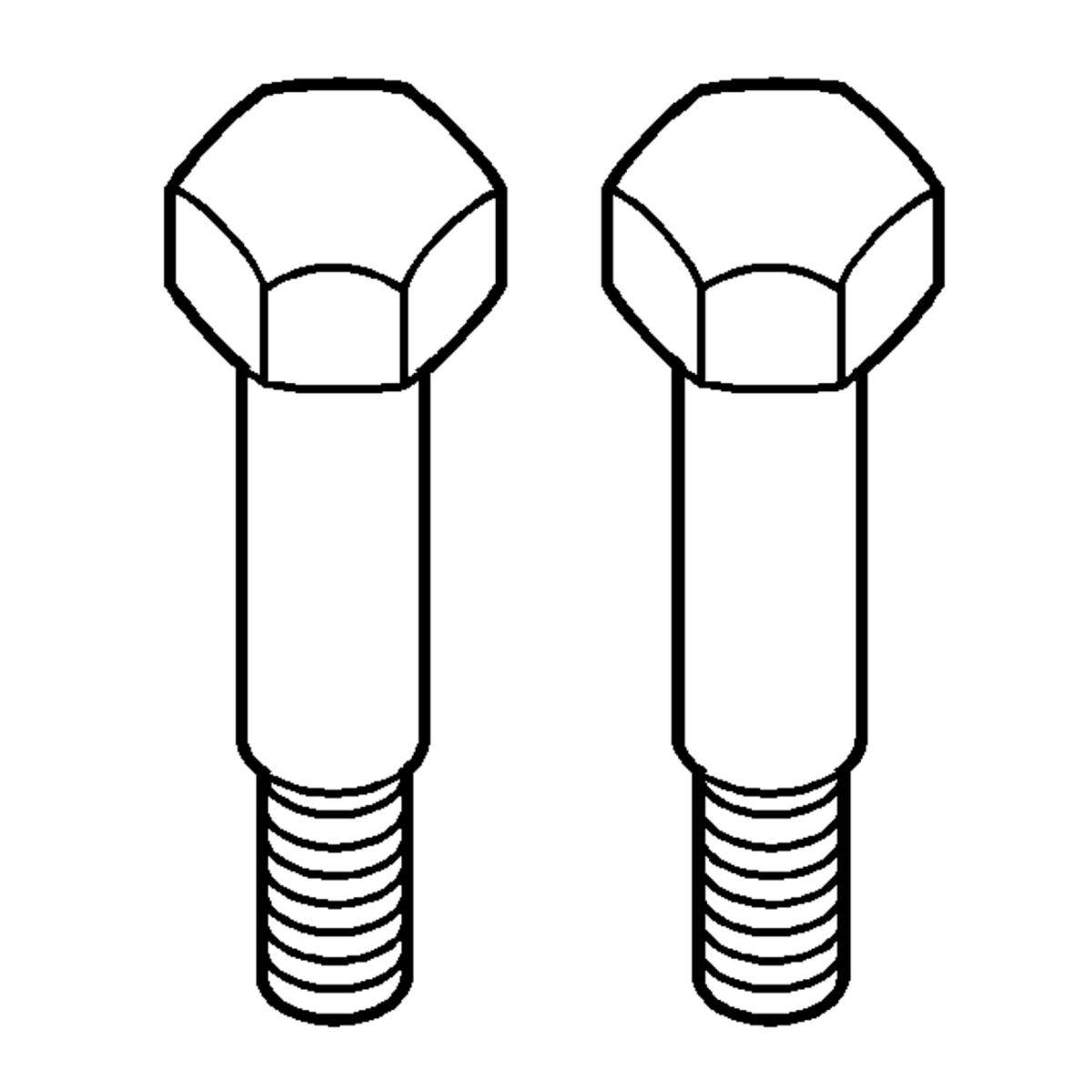

| DT-44873-2 J-44873-2 Shoulder Bolts |
|
| DT-45124 J-45124 Removal Bridge |
|
| DT-45756 J-45756 Rear Output Shaft Seal Installer |
|
| DT-50839 Adapter Plate Bushing Remover and Installer |
|
| DT-50840 Input Shaft Seal Installer |
|
| DT-6332 DT-44394 DT-48877 Seal Protector |
|
| DT-50985 Seal Installer |
|
| GE- 28431-6 J-28431-6 Florescent Oil Dye - 6 1 oz. |
|
| GE-42220 J-42220 High-Intensity Black Light Kit |
