Active Safety Control Module Bracket Replacement

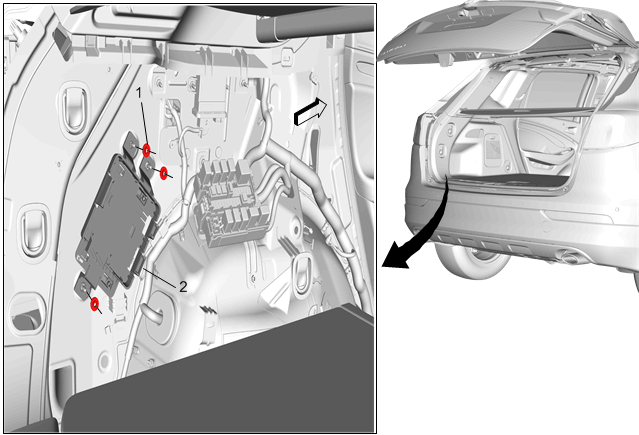

Fig 1: Active Safety Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Electronic Suspension Control Module. Refer to Electronic Suspension Control Module Replacement
1	Active Safety Control Module Bracket Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Active Safety Control Module Bracket
