Front View Camera Replacement

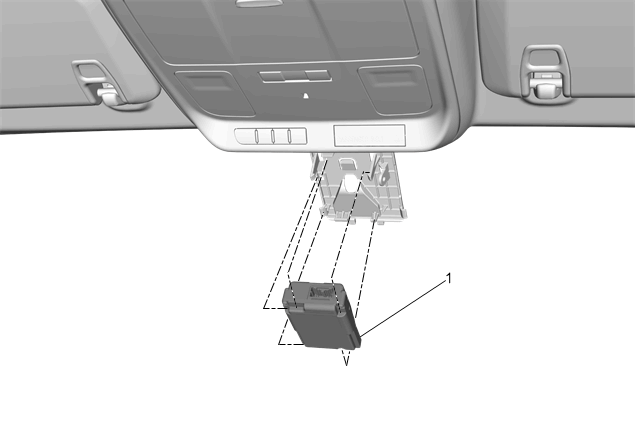

Fig 1: Front View Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Windshield Multifunction Sensor Mount Bracket Cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement
1	Front View Camera Procedure Using a suitable plastic tool, insert the tool between the edge of the camera retainers, turn the tool to release the retainers and the camera and rotate downward. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove Windshield Multifunction Sensor Mount Bracket Cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement

Front View Camera

Procedure

Using a suitable plastic tool, insert the tool between the edge of the camera retainers, turn the tool to release the retainers and the camera and rotate downward.
Disconnect the electrical connector.
