Parking Assist Control Module Replacement

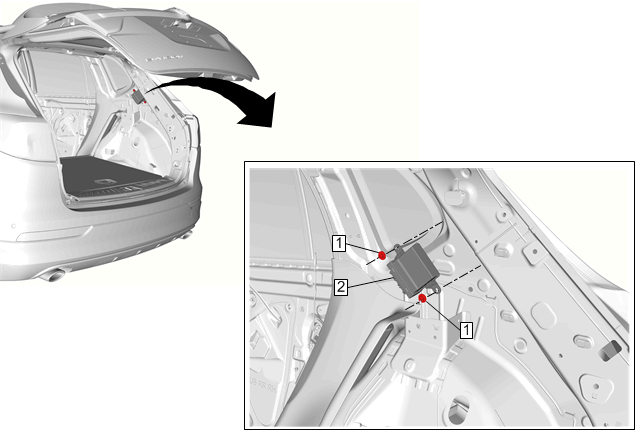

Fig 1: Parking Assist Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Quarter Window Trim Finish Panel. Refer to Quarter Window Trim Finish Panel Replacement
1	Rear Object Alarm Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Rear Object Alarm Control Module Procedure Disconnect the electrical connector. Refer to Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Remove Quarter Window Trim Finish Panel. Refer to Quarter Window Trim Finish Panel Replacement

Rear Object Alarm Control Module Fastener (Qty: 2)

CAUTION:

Tighten
6 N.m (53 lb in)

Rear Object Alarm Control Module

Procedure

Disconnect the electrical connector.
Refer to Control Module References for programming and setup information, if required.
