Side View Driver Information Camera Replacement

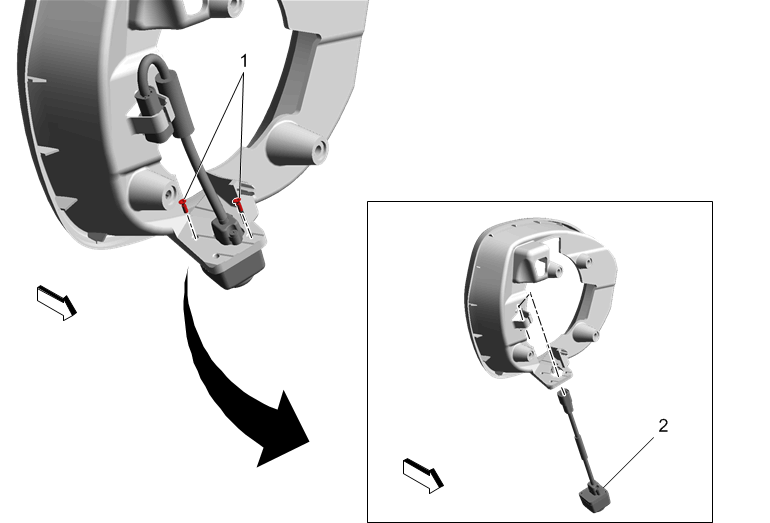

Fig 1: Side View Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Outside Rearview Mirror Housing Bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement
1	Side View Driver Information Camera Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1 N.m (9 lb in)
2	Side View Driver Information Camera Procedure Disengage the retaining tab that secures the electrical connector to the bezel. Route the component through the opening.

Callout

Component Name

Preliminary Procedure
Remove Outside Rearview Mirror Housing Bezel. Refer to Outside Rearview Mirror Housing Bezel Replacement

Side View Driver Information Camera Bolt (Qty: 2)

CAUTION:

Tighten
1 N.m (9 lb in)

Side View Driver Information Camera

Procedure
