Serial Data Gateway Module Replacement

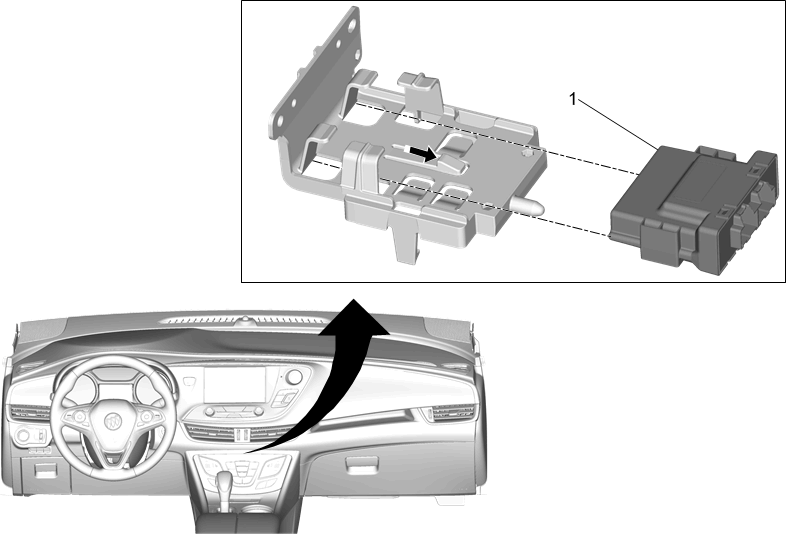

Fig 1: Serial Data Gateway Module
GM4509665Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Serial Data Gateway Bracket Replacement
1 Serial Data Gateway Module

Procedure

  1. Release the retaining tab.
  2. Perform the necessary programming and setup procedure:Control Module References
