Active Safety Control Module Replacement

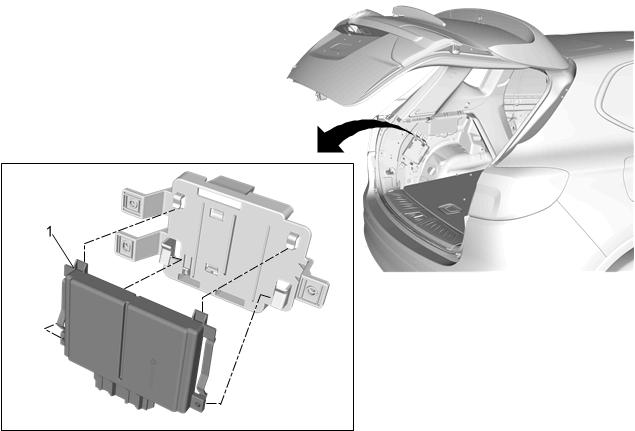

Fig 1: Active Safety Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Active Safety Control Module Bracket. Refer to Active Safety Control Module Bracket Replacement
1	Active Safety Control Module Procedure Disconnect the electrical connector. Release the locking retainers from the active safety control module bracket. Refer to Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Remove Active Safety Control Module Bracket. Refer to Active Safety Control Module Bracket Replacement

Active Safety Control Module

Procedure

Disconnect the electrical connector.
Release the locking retainers from the active safety control module bracket.
Refer to Control Module References for programming and setup information, if required.
