Side Object Sensing Alert Module Replacement

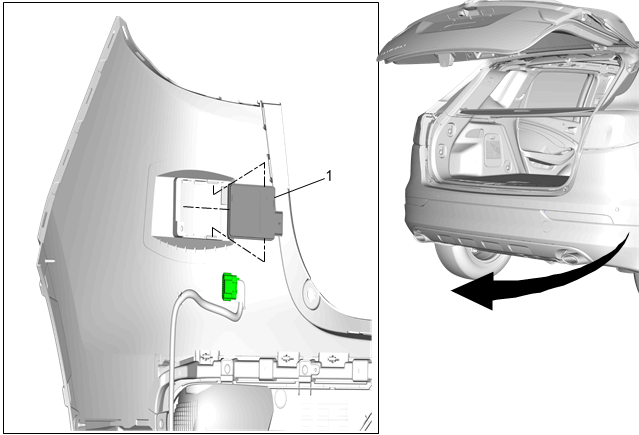

Fig 1: Side Object Sensing Alert Module

GM3905451

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement (Dual Exhaust)Rear Bumper Fascia Replacement (Single Exhaust) .

1

Side Object Sensing Alert Module

Procedure

Disconnect the electrical connector.
Release the tab retainers and slide the module up and out of the retaining bracket.
Refer to Control Module References for programming and setup information, if required.
