Communication Interface Module Replacement

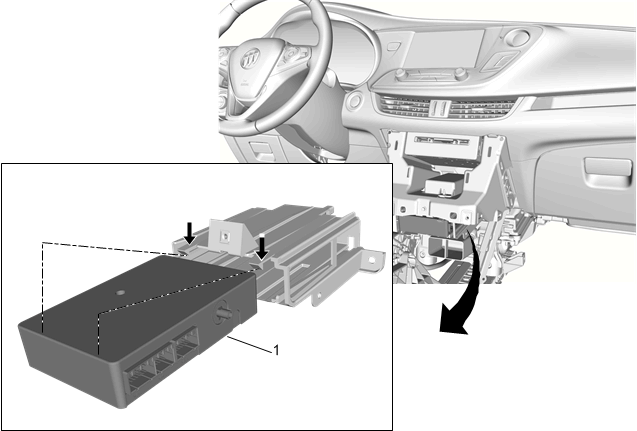

Fig 1: Communication Interface Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Communication Interface Module Bracket Replacement
1	Communication Interface Module Procedure Push tabs to release the module from the bracket and slide rearward. Control Module References for programming and set up information, if required.

Callout

Component Name

Communication Interface Module

Procedure
