Garage Door Opener Transmitter Replacement

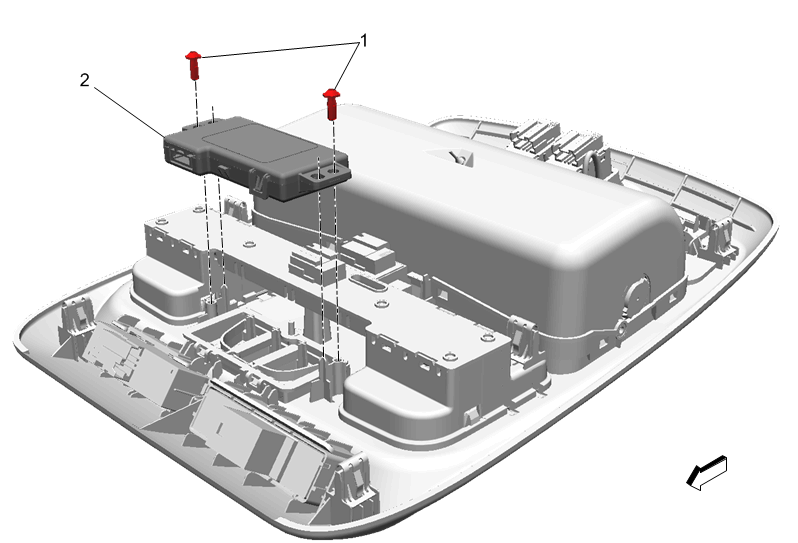

Fig 1: Garage Door Opener Transmitter
GM3985359Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Roof Console. Refer to Roof Console Replacement
1 Garage Door Opener Transmitter Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Garage Door Opener Transmitter
