Low Frequency Console Antenna Replacement

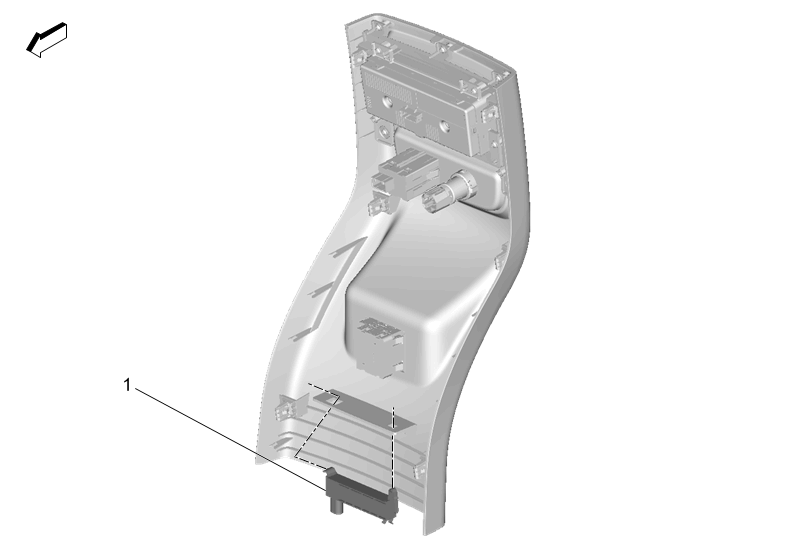

Fig 1: Low Frequency Console Antenna
GM3984128Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Front Floor Console Rear Trim Panel. Refer to Front Floor Console Rear Trim Panel Replacement
1 Low Frequency Console Antenna
Procedure
Unclip the antenna from the trim panel.
