Theft Deterrent Module Replacement

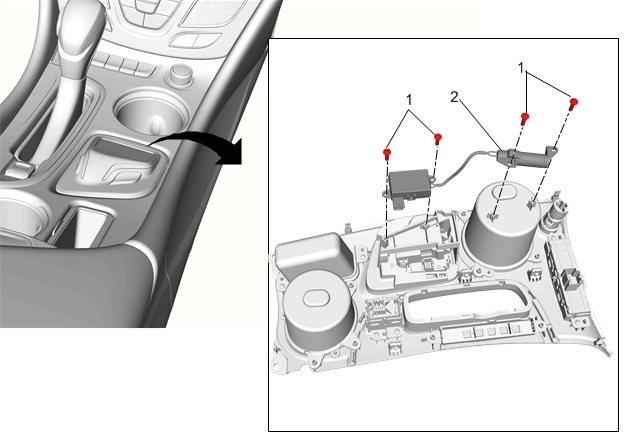

Fig 1: Theft Deterrent Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Floor Console Trim Plate. Refer to Front Floor Console Trim Plate Replacement
1	Theft Deterrent Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connectors. If necessary, program the theft deterrent module. Refer to Control Module References

Callout

Component Name

Preliminary Procedure
Remove Front Floor Console Trim Plate. Refer to Front Floor Console Trim Plate Replacement

Theft Deterrent Fastener (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Theft Deterrent Module

Procedure

Disconnect the electrical connectors.
If necessary, program the theft deterrent module. Refer to Control Module References
