Outside Rearview Mirror Folding Control Module Replacement

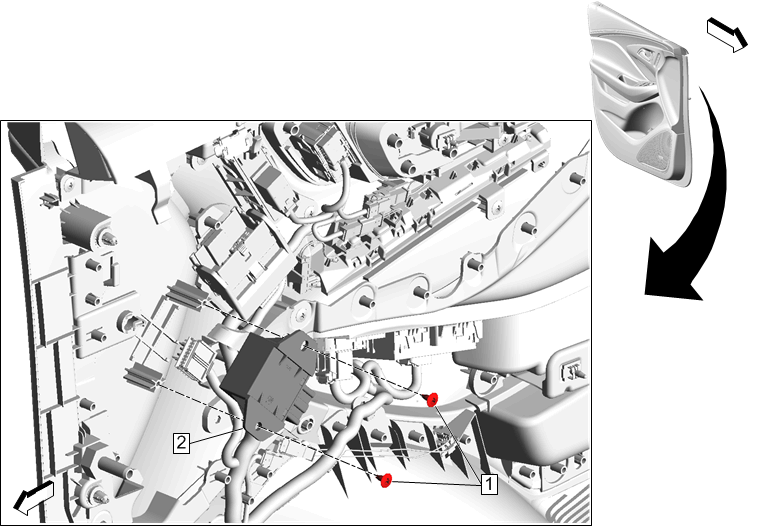

Fig 1: Outside Rearview Mirror Folding Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Side Door Trim Replacement .
1	Front Side Door Trim Panel Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Outside Rearview Mirror Folding Control Module Procedure  Disconnect the electrical connector.
