Front Seat Vent Fan Control Module Replacement

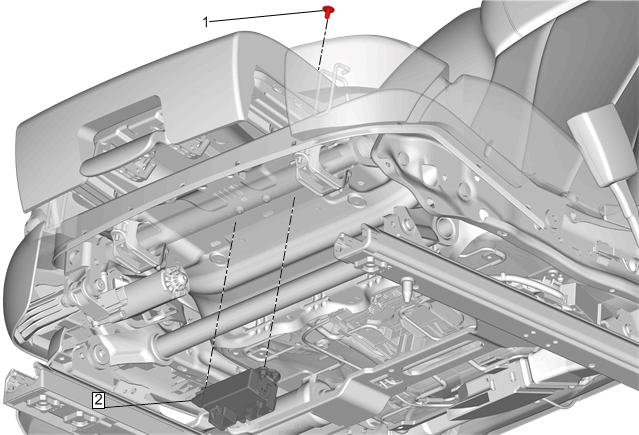

| Callout | Component Name |
|---|---|
| Preliminary Procedure Driver or Passenger Seat Removal and Installation |
|
| 1 | Front Seat Vent Fan Control Module Screw
CAUTION:
Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in) Procedure Adjust the front seat cushion extension to the full forward position to gain access to the module screw. |
| 2 | Front Seat Vent Fan Control Module Procedure
|
