Front Side Door Window Frame Rear Applique Replacement

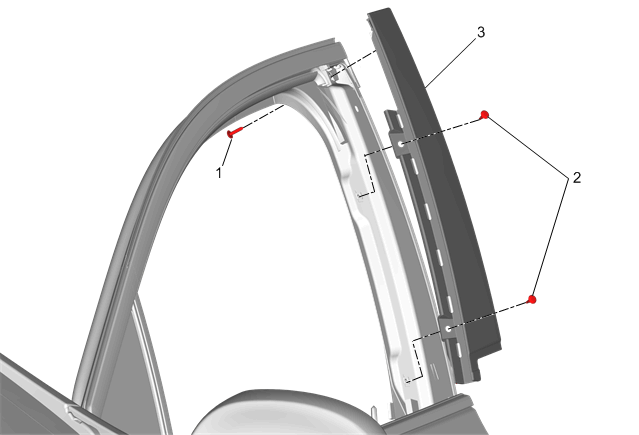

Fig 1: Front Side Door Window Frame Rear Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Window Frame Rear Applique Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Side Door Window Frame Rear Applique Bolt (Qty: 2) Procedure  Repositionthe inner part of the front side door window weatherstrip to gain access to the 2 bolts. Tighten  2.5 N.m (22 lb in)
3	Front Side Door Window Frame Rear Applique
