Front Side Door Window Replacement (Driver Side)

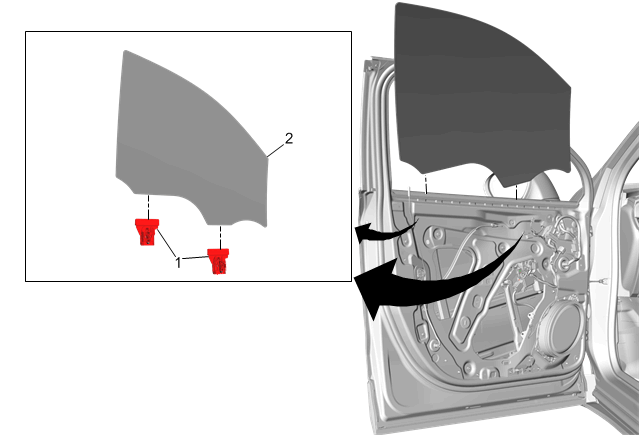

Fig 1: Front Side Door Window (Driver Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Apply masking tape to the door frame and applique. Front Side Door Window Weatherstrip Replacement Remove the water deflector.
1	Front Side Door Window Regulator Sash Clip (Qty: 2) Procedure Do not operate the regulator motor without supporting the window. Ensure that the window remains in the guide when operating the regulator motor. Lower the window enough to gain access to the window regulator sash clips. Using the appropriate tool, push the front side door window sash clips outward, while pulling up on window to release the window from the sash clips. Carefully grasp and tilt the window as you guide the window up and forward. Place the window into the door frame, slide the window downward into the regulator sash clips.
2	Front Side Door Window

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Apply masking tape to the door frame and applique.
Front Side Door Window Weatherstrip Replacement
Remove the water deflector.

Front Side Door Window Regulator Sash Clip (Qty: 2)

Procedure

Do not operate the regulator motor without supporting the window. Ensure that the window remains in the guide when operating the regulator motor.
Lower the window enough to gain access to the window regulator sash clips.
Using the appropriate tool, push the front side door window sash clips outward, while pulling up on window to release the window from the sash clips.
Carefully grasp and tilt the window as you guide the window up and forward.
Place the window into the door frame, slide the window downward into the regulator sash clips.

Front Side Door Window
